Kit replaces the 0409-066 solenoid
OEM Textron/Arctic Cat part
Replaces a damaged or non-working solenoid
WARN PART # 90886 A2
Note: Each post has a nut and washer holding the post in place, do not loosen this nut or you will internally damage the solenoid. To install simply slide your wire end onto the post and secure by re-using your old nut and lock washer on top.

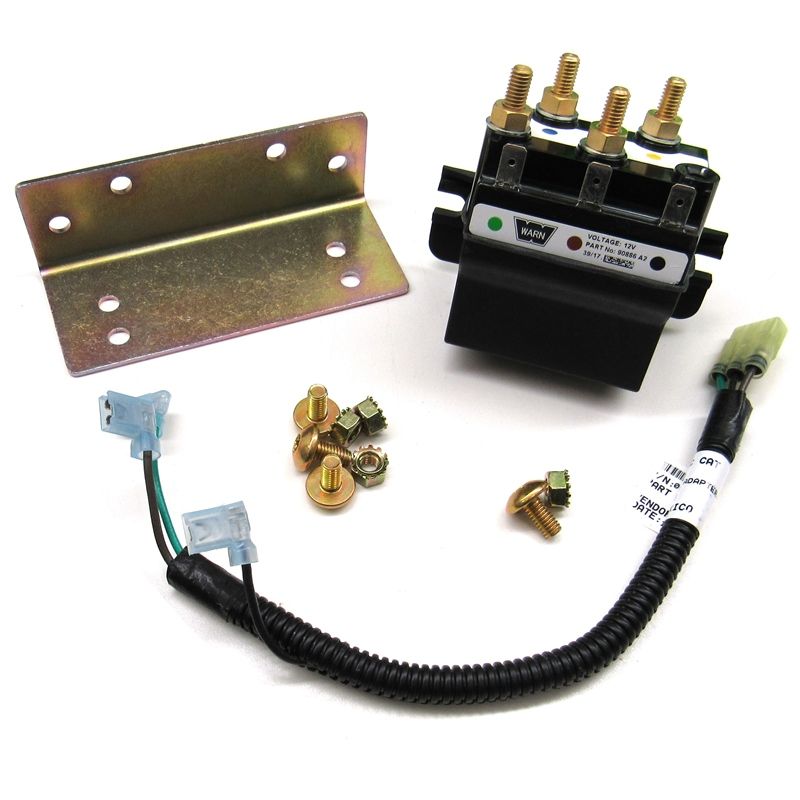

Kit Includes:
0409-236 1 Winch Solenoid
0409-237 1 Solenoid Bracket
0486-672 1 Solenoid Harness
8476-612 4 Machine Screw (M6 x 12 mm)
0623-038 4 Hex Nut (M6)
0123-788 4 Cable Tie
1453-423 1 Instructions
Replaces Part # 0409-041, 0409-066
Fits Models:
2005-2027 Arctic Cat's ATV, Prowler, Wildcat, Stampede, Havoc, & Snowmobile with WARN or Textron/Arctic Cat winches
| SKU | 0409-246 |
|---|---|
| Color | Black |
| Replaces Part # | 0409-041, 0409-066 |
| Prop 65: |
