New for model year 2022, Arctic Cat ADAPT Drive Clutch
8-inch diameter and 30mm taper with idler bearing
1-pound lighter than 2021 production TEAM clutch
5% reduction in inertia
Compact design with 25mm or 14.1% reduction in width
When installing a new clutch, it is recommended to replace the drive belt or premature belt failure could occur

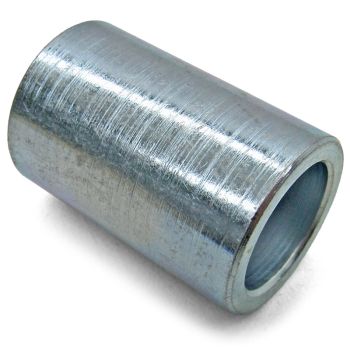

Note: As an alternative to the 2623-326 drive clutch bolt spacer, you can also use the shorter 2623-309 drive clutch bolt with the original 0623-210 drive clutch bolt lock washer
Requires the 0644-650 gold puller to remove this clutch (Sold separately)

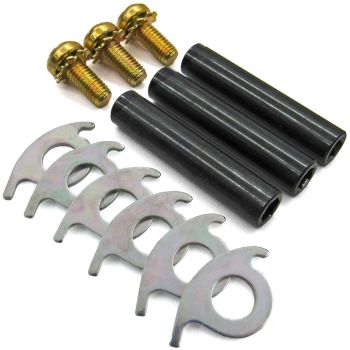

Requires the 8639-454 cam arm pin kit (Sold separately)
Does NOT include cam arm weights, pins, screws, or washers and will need them added for specific model and altitude calibration
Includes clutch with (1646-015) 105/225-pound spring installed

Replaces Part # 0637-503, 0746-889, 0746-898, 0746-902

Direct replacement for the following models:

2023-2024 Riot 9000
2022-2024 ZR 9000

Can be used to replace the 0746-875, 0746-889, & 0746-898 TEAM clutch that came stock on the following models.
You will need to remove drive clutch bolt washer, install 2623-326 drive clutch bolt spacer, and install 0627-112 belt. (Sold separately)

2017-2019 M 9000
2017-2019 XF 9000
2017-2021 ZR 9000

Clutching calibration chart can be viewed in the 'More Info' tab.
Current list of ADAPT drive clutch calibration components:

1646-001 35/135 LB
1646-002 35/215 LB
1646-003 60/220 LB
1646-004 60/240 LB
1646-005 85/255 LB
1646-006 85/275 LB
1646-007 120/265 LB
1646-008 120/285 LB
1646-009 85/225 LB
1646-010 85/235 LB
1646-011 105/255 LB
1646-012 105/285 LB
1646-013 85/205 LB
1646-014 105/205 LB
1646-015 105/225 LB
1646-016 120/235 LB
1646-017 160/300 LB
1646-018 165/310 LB
1646-019 70/170 LB
1646-020 80/180 LB
1646-021 90/190 LB
1646-109 S2-52
1646-110 S2-54
1646-111 S2-56
1646-112 S2-58
1646-113 S2-60
1646-114 S2-62
1646-115 S2-64
1646-116 S2-66
1646-117 S2-68
1646-118 S2-70
1646-210 T1-48
1646-211 T1-50
1646-212 T1-52
1646-213 T1-54
1646-214 T1-56
1646-215 T1-58
1646-216 T1-60
1646-217 T1-62
1646-218 T1-64
1646-219 T1-66
1646-220 T1-68
1646-221 T1-70
1646-222 T1-72
1646-223 T1-74
