A short block is a good repair option when the failure is with the engine cases, transmission, or crankshaft. The short block kit contains a complete inner crankshaft/transmission assembly, necessary gaskets, and head-bolt steel washers. All other components must be removed from the existing engine.
We guarantee this to be a brand new short block direct from Arctic Cat. Because this is a closeout item, we do not offer any warranty coverage, and this is sold as is.
Kit Includes:

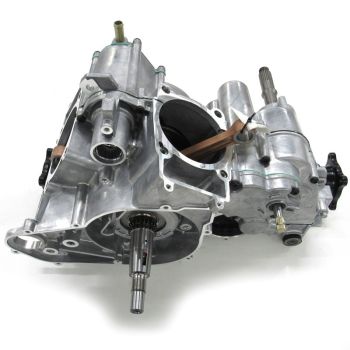

0801-186 1 Short Block with crankcase, crankshaft, and transmission
0801-187 1 Gasket Kit
0801-174 1 Breather Cover
0813-071 1 Water Pump
0410-219 1 Oil Hose
0410-221 1 Crankcase Vent Hose
2516-609 1 Shift Cable Engine Mounting Bracket
8468-620 2 Machine Screw (1 x 20)
8468-635 2 Machine Screw (1 x 35)
0453-627 1 Instructions
Does NOT include stator, flywheel, water temp sensor, starter, clutches, cylinder heads, cylinders, pistons, driveshafts, throttle body, intake manifold, injectors, exhaust, ignition coils, wiring harness, gear position sensor, speed sensor, or ECM required to make this engine run
Fits Models:
2008-2014 ATV 1000 H2
2009-2014 Prowler 1000 H2
(Excludes models with Park gear position)
| SKU | 0801-182 |
|---|---|
| Color | Unpainted |
