Repairs your damaged axle CV boots
Comes with inboard and outboard boots
Note: Can only be used on the 2502-709 axles with 8-rib inboard boots, if you have the newer 2502-763 with the 11-rib inboard boots, you will need to use the 2436-956 kit.
Kit Includes:
3441-504 1 Outboard Boot
3441-511 1 Outboard Small Clamp
3441-512 1 Outboard Large Clamp
3441-507 1 Inboard Boot 8-rib
3441-508 1 Inboard Small Clamp
3441-506 1 Inboard Large Clamp

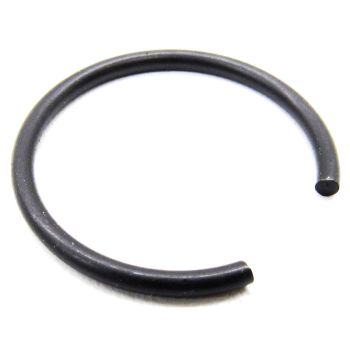

3441-514 1 Retaining clip (28mm)
3441-516 1 Retaining clip (33.5mm)
3441-510 2 Transfer Pin
1056-295 8 Grease
1453-443 1 Instruction

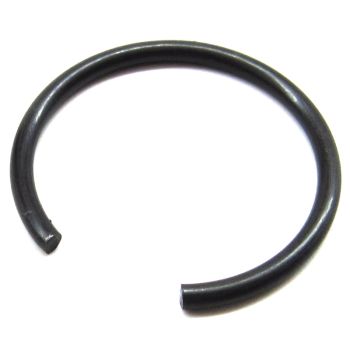

(Does NOT include 3441-513 27.5mm outboard retaining clip)
Note: You need to measure the middle of your axle to determine which outboard retaining clip you need. 26.6mm axles require the 3441-513 27.5mm retaining clip. 27.2mm axles require the 3441-514 28mm retaining clip.
Fits Models:
2018 Wildcat XX with 2502-709 axle
| SKU | 2436-955 |
|---|---|
| Color | Black |
