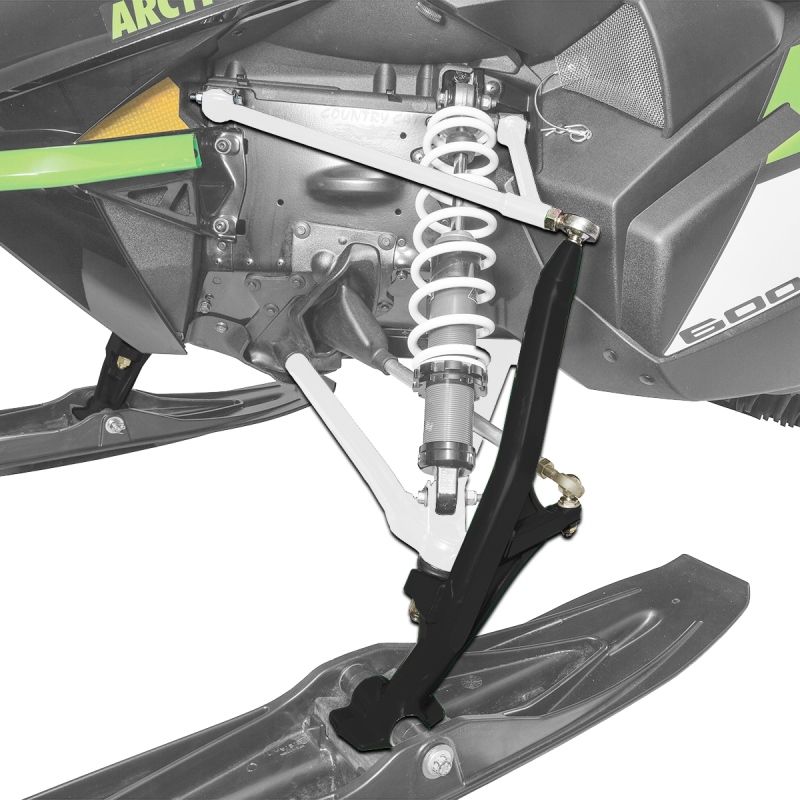

The all-new Arctic Mountain Suspension (AMS), with its new single-post spindles and A-arms boasts a narrower 36" stance and steeper 27-degree caster angle
As you countersteer while side-hilling, the angled-back 27-degree spindle situates the inside ski at the optimal position to cut through the snow
The angle is ideal for boondockers who need a suspension that turns like it already knows where it's going
The new single post forged-aluminum spindle achieves less contact area, regardless of steering angle, thus minimizing drag
The new suspension makes it easier to carve, easier to initiate a side-hill, and easier to navigate through the trees
White A-Arms with Black Spindles
This kit converts 2013-2015 M models with 38"-39" ski stance to 36"-37" ski stance
If using the new 2016-2018 ProClimb-7 skis adjustability is increased to 35"-39" ski stance
2016-2020 M 36" models come stock with this kit installed
This kit will also work great as a spare suspension kit for 2016-2020 M 36" models
Requires rebuilding shocks to add a spacer, which will shorten the extended length
2013-2015 style Float Evol shocks cannot be used with this kit, the Evol chamber will hit the upper a-arm
Includes 2 white upper a-arms, 2 white lower a-arms, 2 tie-rod tubes, 2 spindles, 2 shocks spacers, and re-assembly mounting hardware
Fits Models:
2013-2015 M with 38" front suspension
Kit can also be used to narrow up the following models but you will also need to buy shocks:
2012-2013 F 42"
2012 M 40"
2012-2017 M HCR 40" & 42"
2012-2019 XF 42"
2014-2020 ZR 42"
Complimenting 36" suspension specific shocks can be purchased at additional cost:
Fox Zero 1.5 QS3 - 8639-311
Fox Float 3 QS3 -8639-312
Fox Float 3 Evol Kashima - 7639-015
Fox Float 3 Evol R Kashima - 7639-016
Fox Zero QS3-R - 7639-078
Fox Float 3 Evol QS3-R - 7639-581
Elka Stage 2 - 6639-998
Elka Stage 3 (2016) - 7639-603
Elka Stage 3 (2017) - 7639-602
Elka Stage 5 (2016) - 7639-001
Elka Stage 5 (2017) - 7639-592
| SKU | 7639-020 |
|---|---|
| Color | Black |
| Prop 65: |
