OEM Arctic Cat part
Will work as a left rear or right rear, they are the same
Axle has locking detent balls and circlip on the gearcase end
Locks the shaft into the gearcase so it cannot pop out during use
Features upgraded larger M22x1.5 hub nut threads, the original 0502-596 axles had M18x1.5 threads

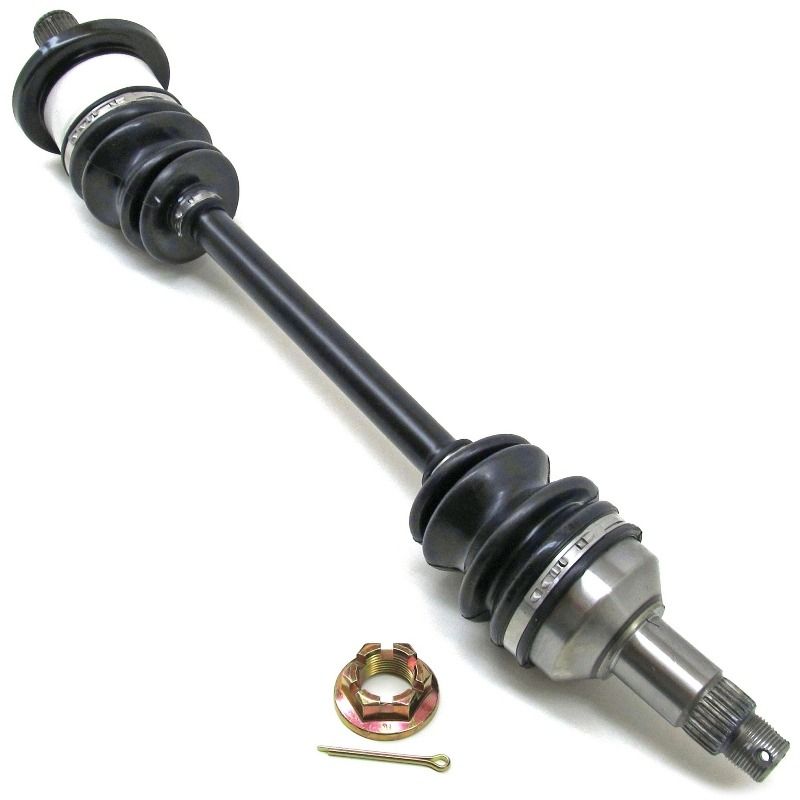

1502-866 kit includes one 1502-798 axle, 0423-607 M22 nut, 0423-407 cotter pin, and 0453-686 installation instructions

Replaces Part # 0502-596, 1502-330

Fits Models:

2005 400 FIS, TBX
2005 500 FIS, TBX, TRV
2004-2005 650 V2
2005 650 H1

1502-866 comes with the same 1502-798 axle that comes with 1502-938, so this kit can also be used on the following models:

2006-2008 400
2009-2013 400 TRV
2010-2012 450
2006-2014 500
2009-2014 550 H1
2006 650 V2
2006-2012 650 H1
2006-2008 700 EFI
2007-2014 700 Diesel
2008-2014 700 H1
2008-2010 Thundercat 1000
2009-2010 1000 TRV
