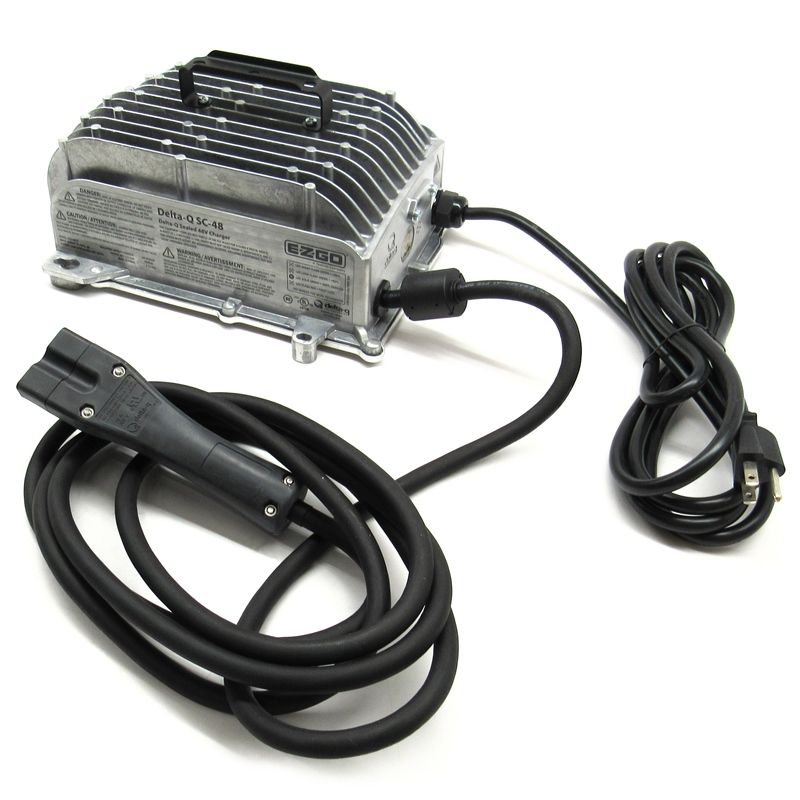

The SC-48 Charger was designed to provide a high level of product reliability, using a sealed die cast enclosure that protects against contaminants entering the charger. Unique in the golf industry, the SC-48 is a high frequency charger that is fully field serviceable, with the DC and AC cords, and internal electronics all serviceable by an approved E-Z-GO technician. Temperature-compensated charging for flooded lead acid batteries helps keep the pack healthy, and the car going for two rounds per day.
DC Output - 48V DC
Maximum DC output power - 650 W
DC output current - 13 A
AC input voltage range -110 VAC
Efficiency - >90%
CEC energy efficiency compliance - Yes
Field serviceable internal boards and DC cable by an authorized E-Z-GO service technician
Dimensions - 10.4" x 8.8" x 4.2" - 26.4 x x 22.4 x 10.7cm
Weight - 7.3 lbs. (3.3 kg)
AC input connector - North American plug
DC output connector - Custom-designed 3-pin DC paddle, including third pin for temperature-compensated charging
Ingress protection rating - IP66
Battery Type - Single temperature-compensated charge profile appropriate for the flooded lead acid batteries used in E-Z-GO fleet golf cars.
3-meter cord
Includes charger with 3-Pin 48V connector and instructions
Replaces Part # 622416, 622417, 622418, 635669, 635670, 635672, PF11595, PF12672, 632874
Fits E-Z-GO 48V electric models with 3-Pin connector:
2012-2021 Express S4, L4
2008-2025 RXV
2012-2021 Shuttle 4X
2011-2012 ST Sport II
2012-2016 Terrain 250
2010-2022 TXT
(Excludes Lithium ELiTE models)
Fits Cushman 48V electric models with 3-Pin connector:
2012-2022 Hauler 800, 800X
2011-2012 MPT 800
2015-2022 Shuttle 2+2
(Excludes Lithium ELiTE models)
| SKU | 635671 |
|---|---|
| Color | Silver |
| Replaces Part # | 622416, 622417, 622418, 635669, 635670, 635672, PF11595, PF12672, 632874 |
| Prop 65: |
