You don't quit during a hard day's work, and neither does the Kawasaki MULE™ 4010 4x4 side x side. This mid-size, high-capacity, 2-passenger vehicle has the muscle and endurance for a full day's work, plus the towing and cargo capacity to take the heavy load off your shoulders.

FEATURING:

617cc, V-Twin, 4-Stroke Engine
1,200-lb Towing Capacity
Steel Cargo Bed with 800-lb Capacity
KAWASAKI STRONG 3-Year Limited Warranty
Selectable 2wd/4wd/Dual-Mode Rear Differential With Diff. Lock
Electric Power Steering (EPS)

Top Features

Power

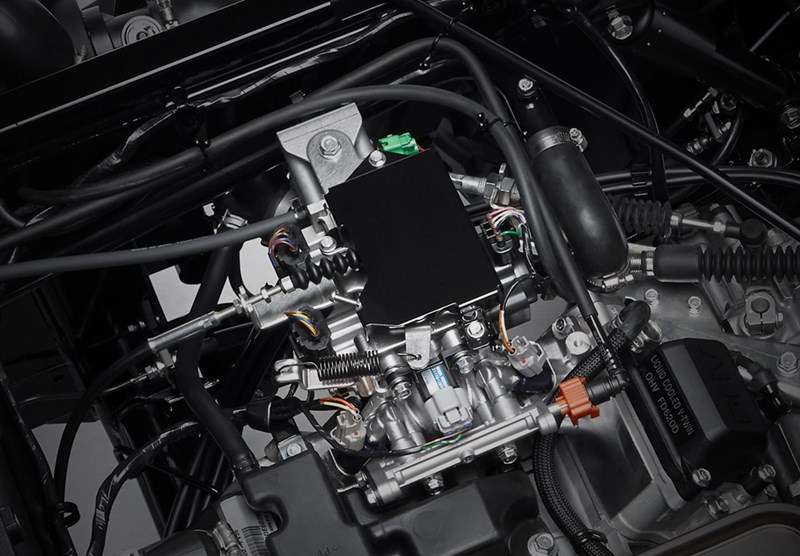

GET THE JOB DONE

The MULE™ 4010 side x side delivers muscle with a dependable, fuel-injected 617cc V-twin engine. The smooth-running, liquid-cooled, 4-stroke starts easily whether it’s hot or cold and provides steady torque for smooth, responsive power when you need it.

Drivetrain

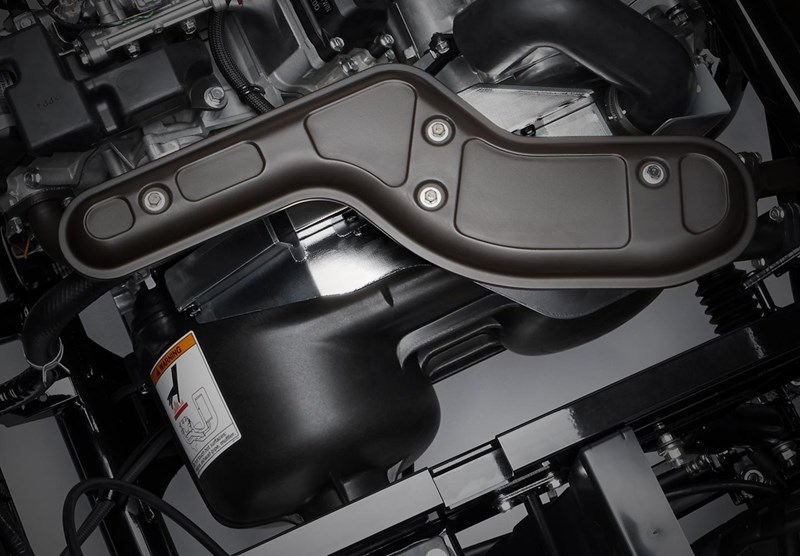

KEEP UP THE POWER

Automatic Continuously Variable Transmission (CVT) puts the power to the ground. MULE™ 4010 4x4 has selectable 4WD and features a dual-mode rear differential for added traction when needed.

Chassis

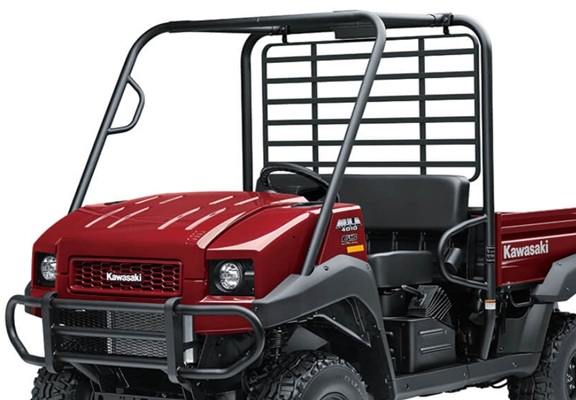

STRONG FOUNDATION

Steel tube ladder-type frame is the sturdy foundation of Kawasaki MULE™ side x sides. Optimized rigidity contributes to traction, stability, and ride comfort while the Roll Over Protective Structure (ROPS) and steel front bumper provide a rugged external structure.

Capability

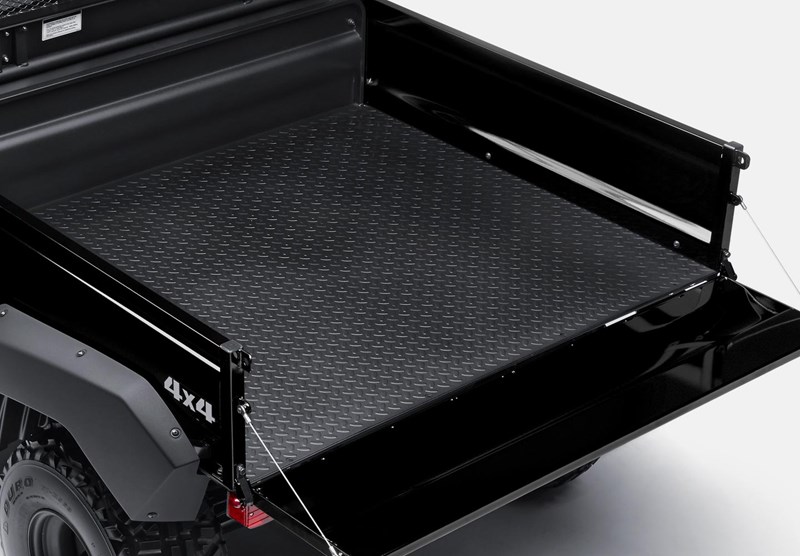

TAKE A LOAD OFF

Independent MacPherson strut-type front suspension and DeDion rear suspension provide a firm and predictable platform that is ideal for a work-oriented side x side. Tow up to 1,200 lbs and carry up to 800 lbs in the cargo bed.

*Features Subject to Change Without Notice.

Specs

Specifications

Engine	4-stroke, 2-cylinder, OHV, 90° V-twin, Liquid-cooled
Displacement	617cc
Maximum Horsepower	20.0 hp¹ @ 3,600 rpm
Maximum Torque	34.7 lb-ft @ 2,500 rpm
Bore x Stroke	76.0 x 68.0mm
Compression Ratio	10.3:1
Fuel System	DFI® with 34mm Mikuni throttle body
Transmission	Continuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive	Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock
Engine Braking	No
Alternator Output (max)	23 amp
Front Suspension/Wheel Travel	MacPherson Strut/3.9 in
Rear Suspension / Wheel Travel	DeDion Axle/2.8 in
Front Tires	23 x 11-10
Rear Tires	23 x 11-10
Steering	Rack-and-pinion w/ Electric Power Steering (EPS)
Front Brakes	Drum
Rear Brakes	Drum
Park Brake Type	Independent, mechanical drum
Ground Clearance	6.9 in
Fuel Capacity	6.3 gal
Turning Radius	11.2 ft
Cargo Bed Dimensions (LxWxH)	46.3 x 51.6 x 11.4 in
Cargo Bed Load Capacity	800 lb
Payload Capacity	1,327 lb
Seating Capacity	2
Towing Capacity	1,200 lb
Lighting	(2) Halogen headlights, (2) tail/brake lights
Overall Length	116.7 in
Overall Width	62.0 in
Overall Height	75.8 in
Estimated Dry Weight	1,367.1 lb**
Curb Weight	1,433.3 lb*
Wheelbase	73.6 in
Instruments	Parking brake warning light, coolant temperature warning light, 12V DC outlet, fuel gauge, hour meter
Color	Dark Royal Red

Specifications subject to change without notice.

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

**Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

¹This vehicle's HP was measured according to ISO standard 4106. This ISO standard measures HP differently than the SAE standards by which the horsepower of many cars is measured, and as a result the referenced HP measurement may be higher than if it were measured by an SAE standard.

All MULE™ 4000/4010 and MULE 4000/4010 TRANS™ Series side x side's Rollover Protective Structure (ROPS) meets the performance requirements of SAE J1194.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear protective gear appropriate for the use of this vehicle. Never operate under the influence of drugs or alcohol. Protect the environment. The Kawasaki MULE™ side x side is an off- highway vehicle only, and is not designed, equipped or manufactured for use on public streets, roads or highways. Obey the laws and regulations that control the use of your vehicle. ©2025 Kawasaki Motors Corp., U.S.A.
