Features



The MULE 4010 Trans4x4® side x sides are versatile, mid-size, 2- to 4-passenger machines that are capable of putting in a hard day of work as well as touring around the property. With the Trans Cab system, you get enough room for materials or your entire crew.

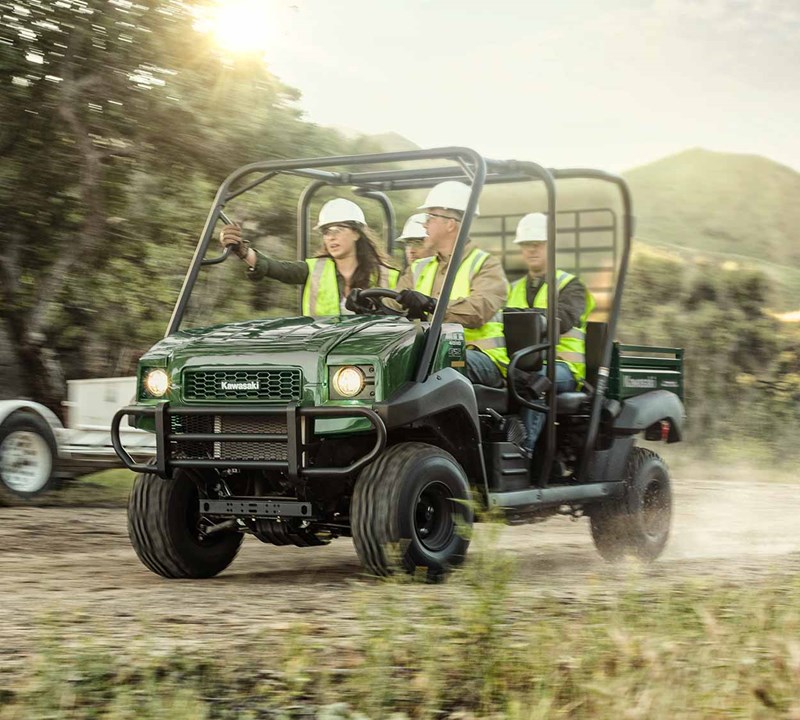

MULE 4010 TRANS Overview

       FEATURING:

  • 617cc, V-Twin,4-Stroke Engine
  • 2 to 4 Passenger Trans Cab System
  • 1,200-lb Towing Capacity
  • Steel Cargo Bed with 800-lb Capacity
  • Kawasaki Strong 3-Year Limited Warranty
  • Selectable 2WD/4WD/dual-mode rear differential with diff. lock
  • Electric Power Steering (EPS)
  • Continuously Variable Transmission (CVT) with (H,L,N,R)
  • Steel front bumper and steel cargo bed



Top Features

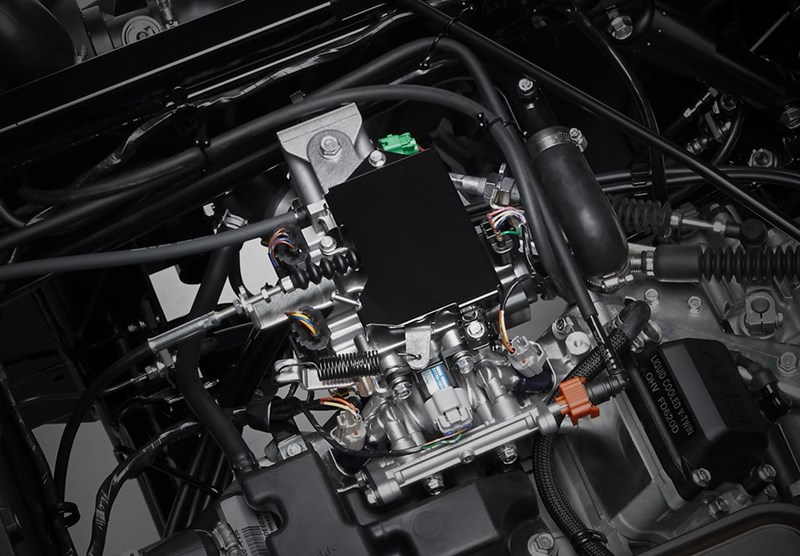

MULE 4010 TRANS Power POWER

BUILT KAWASAKI STRONG

A 617cc V-twin engine produces strong, dependable performance. Start up in cold or warm temperatures with ease thanks to fuel injection.

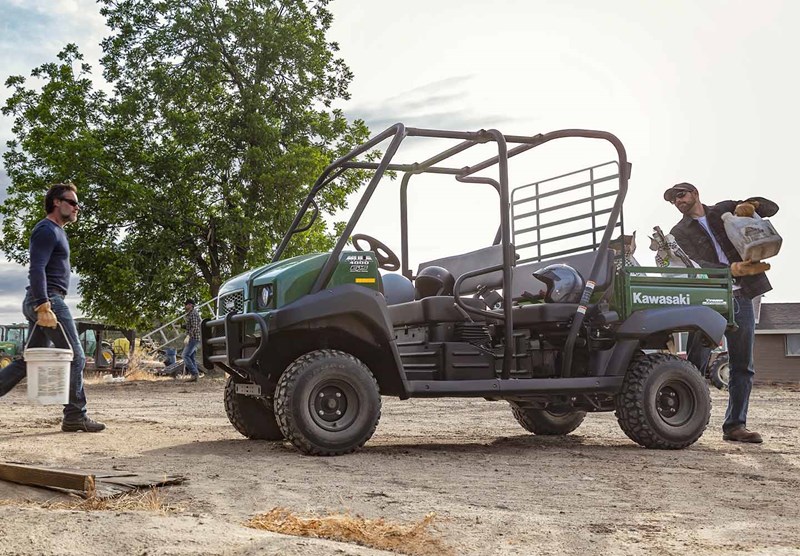

HAULING & TOWING

MULE 4010 TRANS Hauling

PACKED WITH PULLING POWER

Move extra equipment, supplies, and tools easily with 1,200 lbs of towing capacity. While you’re at it, haul up to 800 lbs (400 lbs in two-row configuration) in the durable steel cargo bed designed to tackle tough loads. The cargo bed also tilts for easy access to the engine compartment.

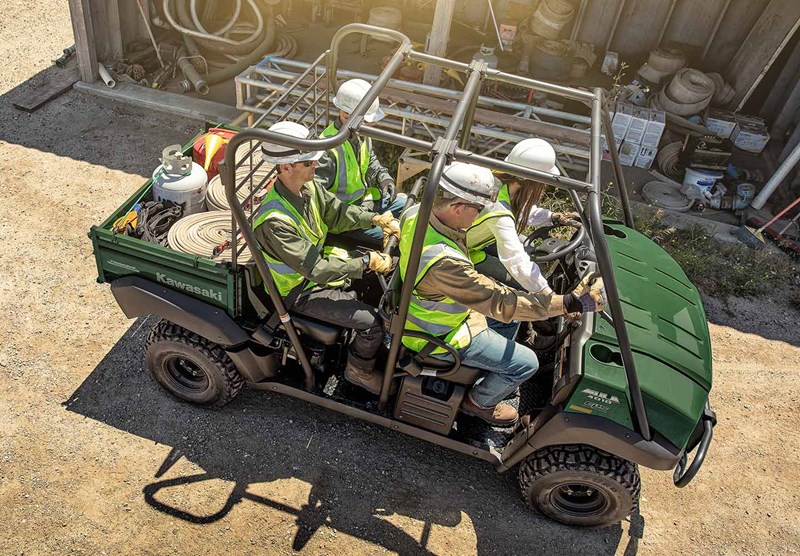

MULE 4010 TRANS CAB

TRANS CAB

MOVE PEOPLE AND PAYLOADS

The 2- to 4-passenger Trans Cab™ system design lets you quickly change from a 4-seat crew mover to a 2-seat cargo hauler, without the need for tools.

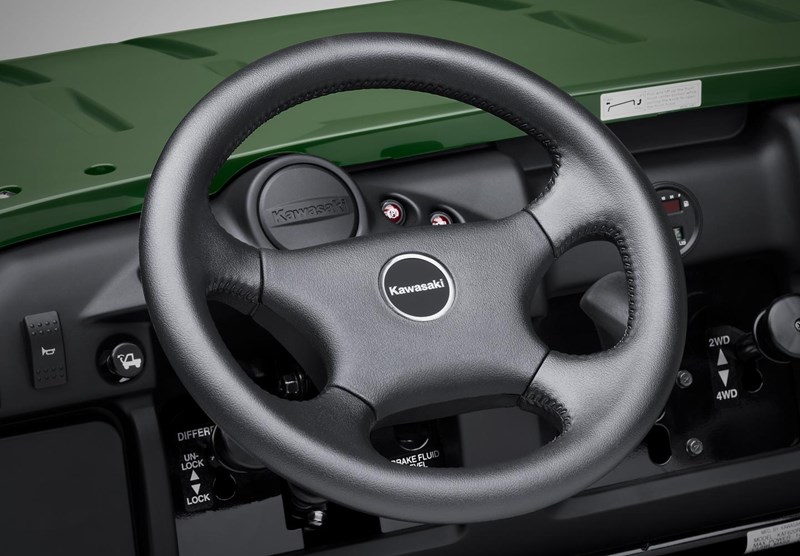

COMFORT & CONVENIENCE

MULE 4010 Comfort

RIDE PREPARED

Electric Power Steering (EPS), thick padded bench seats and passenger grab bars help make the ride comfortable. The dashboard houses 2 glove boxes, a 12V DC outlet, and cup holders for added convenience, along with a digital fuel gauge and hour meter. A generous 15.8-gallon storage space is located under the hood, making it easy to stow additional belongings.





*Features Subject to Change Without Notice.

Previous model year shown.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear protective gear appropriate for the use of this vehicle. Never operate under the influence of drugs or alcohol. Protect the environment. The Kawasaki MULE™ side x side is an off- highway vehicle only, and is not designed, equipped or manufactured for use on public streets, roads or highways. Obey the laws and regulations that control the use of your vehicle. ©2025 Kawasaki Motors Corp., U.S.A.

Specifications



Engine Type

4-stroke, 2-cylinder, OHV, 90° V-twin, Liquid-cooled

Displacement

617cc

Maximum Horsepower

20.0 hp¹ @ 3,600 rpm

Maximum Torque

34.7 lb-ft @ 2,500 rpm

Bore x Stroke

76.0 x 68.0mm

Compression Ratio

10:3:1

Fuel System

DFI® with 34mm Mikuni throttle body

Transmission

Continuously Variable Transmission (CVT) with (H,L,N,R)

Final Drive

Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock

Engine Braking

No

Alternator Output (max)

23 amp

Front Suspension/Wheel Travel

MacPherson Strut/3.9 in

Rear Suspension/Wheel Travel

DeDion Axle/2.8 in

Front Tires

23 x 11-10

Rear Tires

23 x 11-10

Steering

Rack-and-pinion w/ Electric Power Steering (EPS)

Front Brakes

Drum

Rear Brakes

Drum

Park Brake Type

Independent, mechanical drum

Ground Clearance

7.1 in

Fuel Capacity

6.3 gal

Turning Radius

12.8 ft

Cargo Bed Dimensions (LxWxH)

50.4 x 47.6 x 11.2 in (2-person) / 30.3 x 47.6 x 11.2 in (4-person)

Cargo Bed Capacity

800 lb (2-person) / 401 lb (4-person)

Payload Capacity

1,330 lb

Seating Capacity

2-4

Towing Capacity

1,200 lb

Lighting

(2) Halogen headlights, (2) tail/brake lights

Overall Length

128.5 in

Overall Width

58.5 in

Overall Height

75.8 in

Dry Weight

1,521.5 lb**

Curb Weight

1,587.6 lb*

Wheelbase

85.2 in

Instruments

Parking brake warning light, coolant temperature warning light, 12V DC outlet, fuel gauge, hour meter

Color

Timberline Green

Warranty

Kawasaki Strong 3-Year Limited Warranty

Kawasaki Protection Plus™ (optional)

12, 24, 36 or 48 months

Specifications subject to change without notice.

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

**Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

¹This vehicle's HP was measured according to ISO standard 4106. This ISO standard measures HP differently than the SAE standards by which the horsepower of many cars is measured, and as a result the referenced HP measurement may be higher than if it were measured by an SAE standard.

All MULE™ 4000/4010 and MULE 4000/4010 TRANS™ Series side x side's Rollover Protective Structure (ROPS) meets the performance requirements of SAE J1194.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear protective gear appropriate for the use of this vehicle. Never operate under the influence of drugs or alcohol. Protect the environment. The Kawasaki MULE™ side x side is an off- highway vehicle only, and is not designed, equipped or manufactured for use on public streets, roads or highways. Obey the laws and regulations that control the use of your vehicle. ©2025 Kawasaki Motors Corp., U.S.A.
