| Features |
|
The all-new RIDGE® XR side x side sets the new off-road standard with a game-changing, 999cc Kawasaki-built in-line four-cylinder engine and an optimized chassis, combining to deliver exceptional ride quality. Inside, you'll experience premium controls and high-grade fit-and-finish details that make for remarkably comfortable recreational riding. Premium off-roading has arrived. FEATURING:
|
|
|
Top Features |
|
|
VERSATILE PERFORMANCE OFF-ROAD LIKE NEVER BEFORE An all-new 999cc in-line four-cylinder engine equips RIDGE® XR side x sides for a wide range of conditions, from rugged work to advanced play. Unique, selectable Power Modes offer precise control when you need it most. |
|
| Engine |
|
 |
KAWASAKI FIRST RIDGE® XR is the first Kawasaki side x side with a four-cylinder engine at the core. This means more power and higher torque than ever before, accommodating a wide range of work and recreation situations. Tuned to deliver an impressive 116 horsepower1, the high-performance in-line four produces unparalleled trail riding enunciated by an unmistakable howl to excite the senses. |
| Power Modes |
|
 |
POWER FOR WORK & PLAY Three unique power modes allow the driver to set power delivery to suit their preference and adapt to current conditions.
|
| CVT | |
 |
SMOOTH OPERATION A Continuously Variable Transmission (CVT) offers incredibly smooth engine response, contributing to the silky-smooth power delivery—especially from start to 20 mph. Thanks to carefully tuned engine settings, the CVT belt catch and release is extremely natural, ensuring the belt stays engaged until almost completely stopped, adding to confident downhill engine braking. |

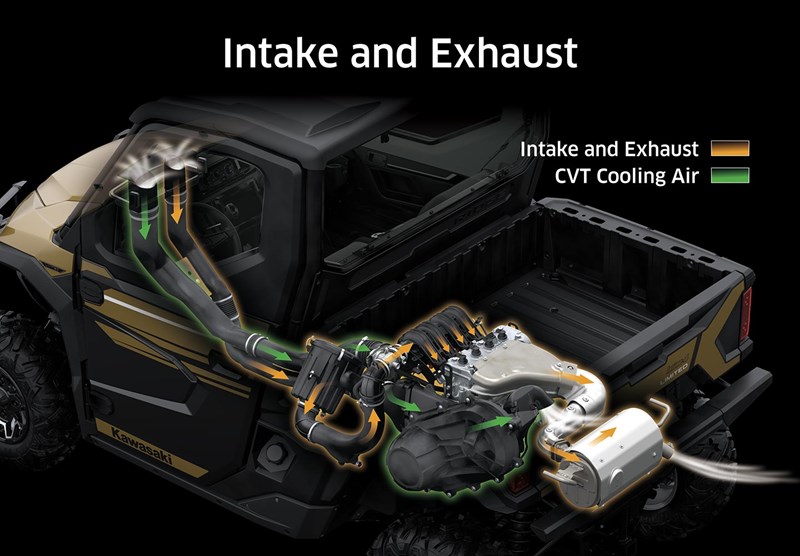

| Intake & Exhaust |
|
 |
CLEAN & COOL PERFORMANCE The snorkel-style intake for the engine and CVT is located under the hood, where the chance of dust or water ingestion is minimal. A high-quality Donaldson air filter keeps debris and dust from entering the engine with superb dust collection performance. Plus, rear-facing exhaust ports keep heat away from the cabin, while a dual-wall heat shield further contributes to heat shielding. |
| 4WD/Diff Lock |
|
 |

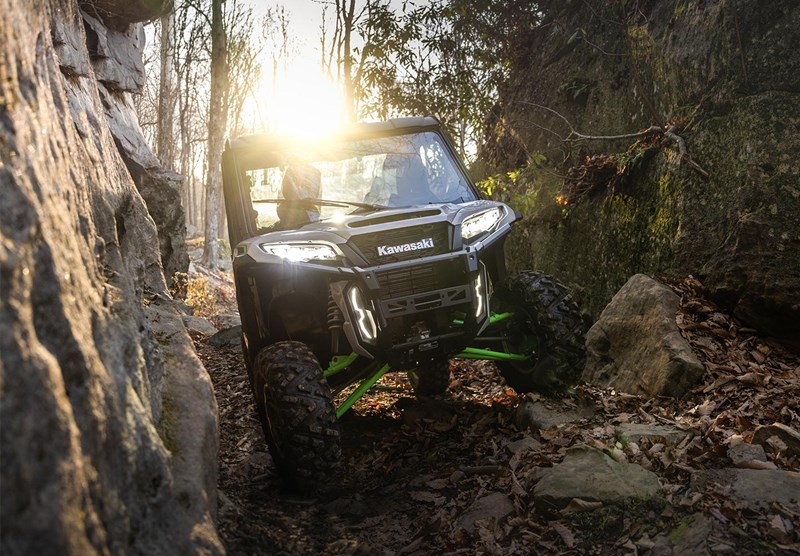

STAY IN CONTROL On-the-fly electrically selectable 4WD and rear differential lock allows drivers to quickly and easily switch between drive systems to better match terrain conditions. Locking the rear differential causes the rear wheels to act as a single axle, (preventing wheels from free spinning in low traction situations or when a wheel is suspended in the air) helping produce maximum traction when riding in muddy or snowy conditions.
|
|
|
|
|
PREMIUM COMFORT A BETTER RIDE Class-leading comfort starts with a highly composed chassis and spacious accommodations. A factory cab with advanced HVAC system (on select models) complements premium interior features with automotive-inspired fit and finish. Long-travel suspension and high ground clearance, as well as a high-capacity, flat cargo bed gives RIDGE® XR the versatility to power through technical recreational riding and hard utility work with greater comfort. On-the-fly electrically selectable 4WD and rear differential locks enhance ride comfort, while a high-tech cabin further promotes rider connection and ride quality. |
|
| Chassis | |
 |
CALM-INSPIRED DESIGN Designed with utmost comfort in mind, the RIDGE® XR side x side’s wide-body chassis delivers composed handling character and superb ride comfort. The frame accommodates long-travel suspension while the full-cab ensures peak comfort. This means when you’re on the move, you get complete calm inside the cabin. |
| HVAC | |
 |
CONTROL YOUR CLIMATE A factory cab comes with heating, ventilation and air conditioning (HVAC), creating a comfortable escape from the heat in summer, the cold in winter, and everything in between. Excellent seal performance ensures climate control in the cabin. The full cab includes: a glass windshield, full doors with power windows, glass rear panel, plastic roof with roof liner, windshield wiper and washer, rearview mirror, and interior ceiling light. HVAC units include multiple vents with mode selection (defrost, defrost + floor, floor, dash + floor, dash), adjustable fan strength, choice of fresh or recirculated air, and fast acting temperature control. |
| Cabin | |
 |
ADJUSTABLE & SPACIOUS The RIDGE® XR side x side’s ride comfort starts inside the cabin, with ample shoulder space and legroom for three people seated side by side, as well as three-point seatbelts for support. Lever-adjustable driver's seat and tilt steering allows the driver to further fine-tune their position for increased control and comfort. Sliding behind the wheel feels like getting into a car—from the natural sitting position to the position of the steering wheel and controls. |
| Tires & Wheels |
|
 |
PURPOSEFUL DESIGN Double-wishbone suspension enables all wheels to navigate obstacles with minimum effect on the chassis, while long wheel travel offers high 14.6-inch ground clearance on the RIDGE® XR HVAC model (max preload). Rear shocks with dual-rate springs and carefully tuned suspension settings offer stellar performance for a composed, comfortable ride. Besides adding to the premium, rugged style, 30-inch large-diameter tires and 14-inch aluminum wheels contribute to excellent off-road capability. |

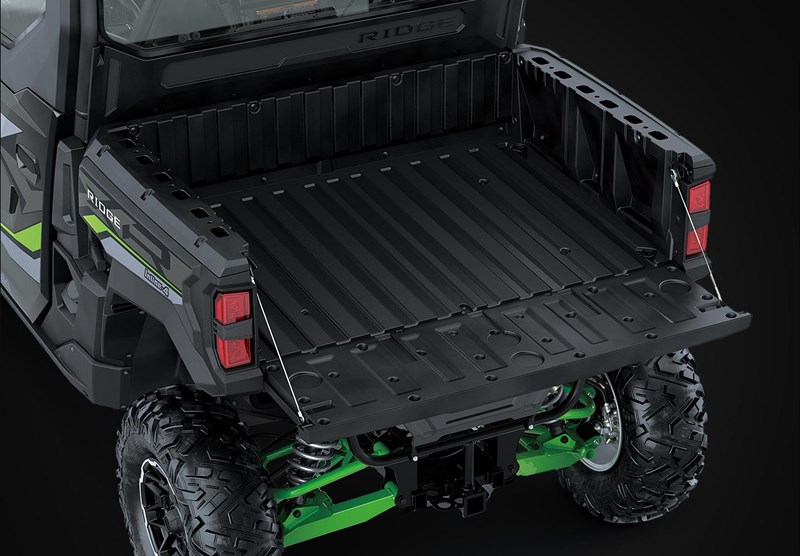

| Cargo Bed |
|
 |
CONVENIENCE With 1,000-lbs. cargo capacity and 2,500-lbs. towing capacity, RIDGE® XR is built for hard work. The 37.6 x 49.0 x 12.8-inch flat cargo bed design facilitates loading from three sides and helps secure items being transported with four built-in hooks serving as handy tie-down points. Easy engine access comes thanks to a gas-assisted tilting cargo bed and features a single-latch tailgate release system for easy opening and closing. |

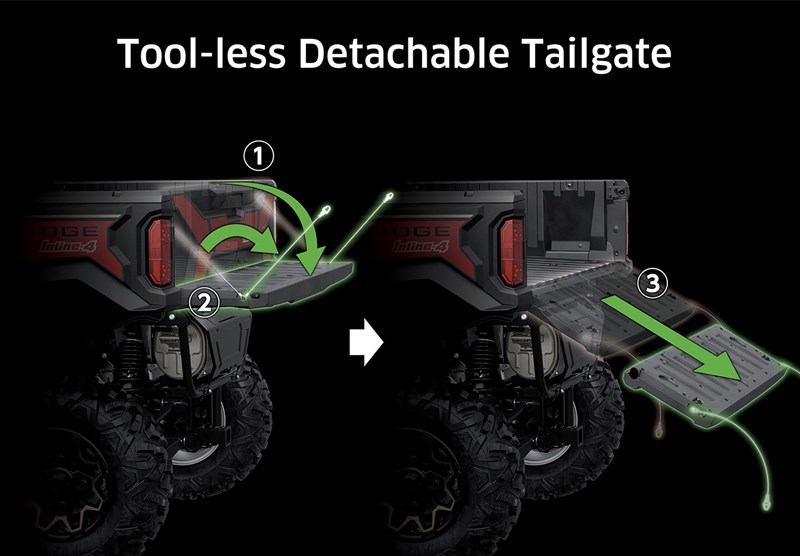

| Tailgate | |
 |
DETACHABLE TAILGATE On RIDGE® XR, the tailgate’s injection-molded design includes built-in cup holders, a convenient feature when the tailgate is down. The tailgate can also be removed without tools for extended hauling capability. |
| Maintenance | |
 |

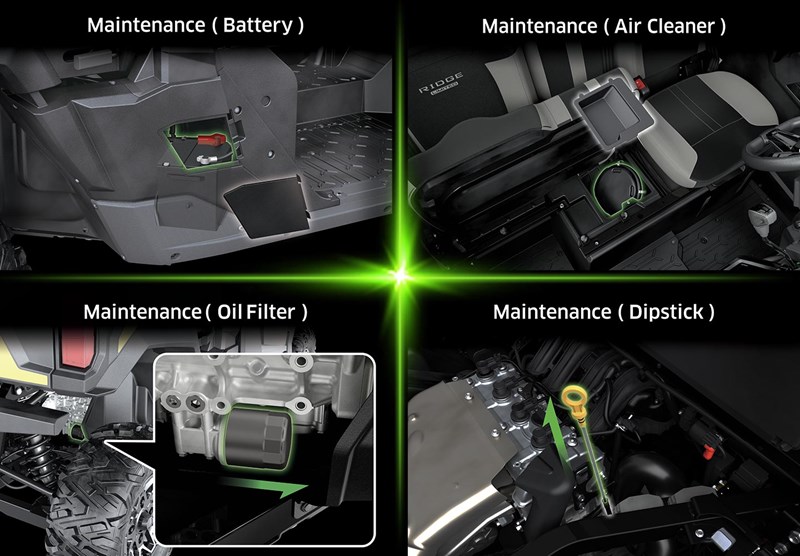

EASY ACCESS Maintaining your vehicle has never been easier with simple access to the oil filter, dipstick, battery, and air filter. On RIDGE® XR, the air filter element is located under the passenger seat, and the oil filter can be easily accessed by removing the fender panel forward of the rear wheel. The dipstick can be found by lifting the tilting cargo bed and the battery can be located behind the seat base access panel. |
| Technology | |
 |

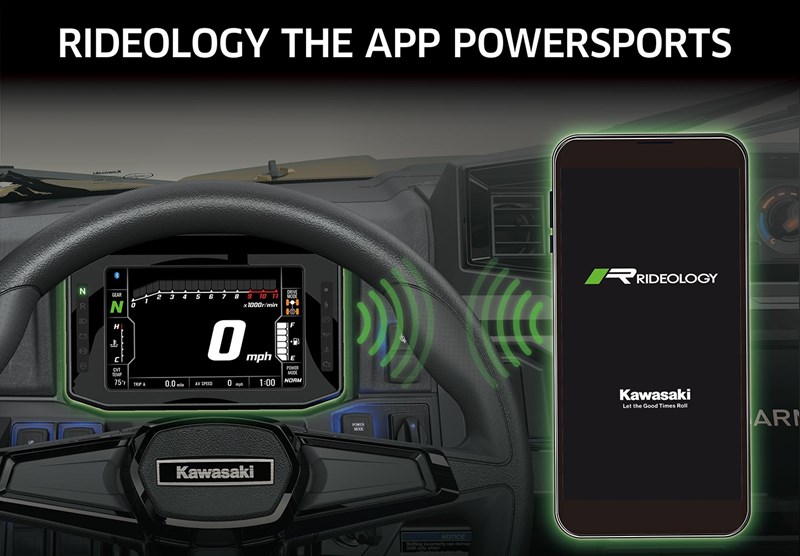

RIDER CONNECTION RIDGE® XR boasts a high-grade, 7-inch, full-color TFT LCD screen featuring multiple selectable display modes and vehicle information - all available at a glance. In addition to Riding Logs, community features and maintenance and display notifications, Kawasaki’s Powersports-exclusive RIDEOLOGY app offers several new functional and entertainment features designed to enhance group rides. Built-in Bluetooth® technology enables drivers to connect to RIDGE® XR wirelessly, and with RIDEOLOGY THE APP POWERSPORTS, riders get vehicle information directly from the instrument panel. |
| Interior | |
 |
HIGH-GRADE INSIDE On RIDGE® XR HVAC, high-backed, form-fitting, lever-adjustable bucket seats provide support during sport riding and stellar ride comfort at cruising speeds. The seat material has superb elasticity for an even more comfortable ride. Each seat position is equipped with a three-point seat belt, and the seats’ ergonomic shape cradles passengers, providing greater support. The interior design allows a wide space between the dashboard and the seats, making it possible to walk through the cabin. |
|
|
|
|
KAWASKI QUALITY BUILT TO LAST Kawasaki craftsmanship shines in every detail of RIDGE® XR. In addition to standard electric power steering, a high-quality fit and finish on both the exterior and interior yield a first-class ride that stands the test of time. |
|

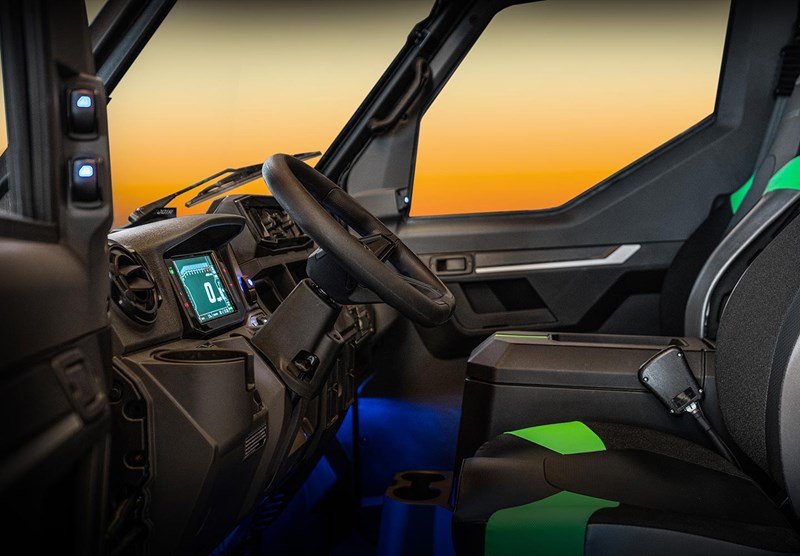

| EPS | |
 |
RIDE CONTROL Electric power steering (EPS) is standard, and Kawasaki’s high-grade EPS system works best when you need it most: at extremely slow speed and when stopped. EPS also acts as a damping system, further enhancing ride comfort and control. The inertia of the electric motor significantly reduces kickback to the steering wheel caused by shocks to the wheels. |

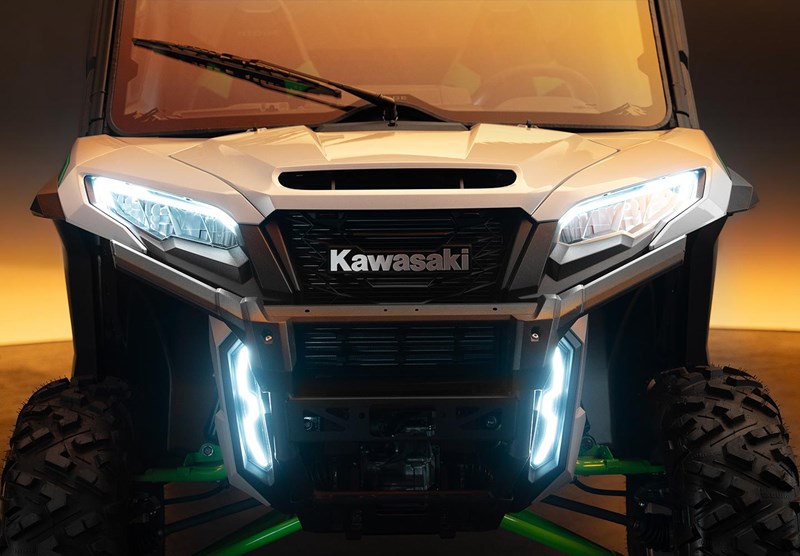

| Exterior | |
 |
SPORTY OUTSIDE Complementing its sporty and tough styling, the RIDGE® XR side x side’s sleek exterior includes painted fenders and all-LED lighting. A fierce expression comes from the front headlights’ line-type LED position lamps, a large aluminum Kawasaki emblem on the front grille, a light-looking steel front bumper, and LED accent lights on the bumper shrouds. Roof and doors are standard on all RIDGE® XR models, adding to the premium quality feel. Doors include both exterior and interior handles, and on full cab models, electric power windows. Automotive-style dashboard and controls are further enhanced by high-grade fit and finish details like floor lighting, backlit switches and decorative components. |
| Interior | |
 |

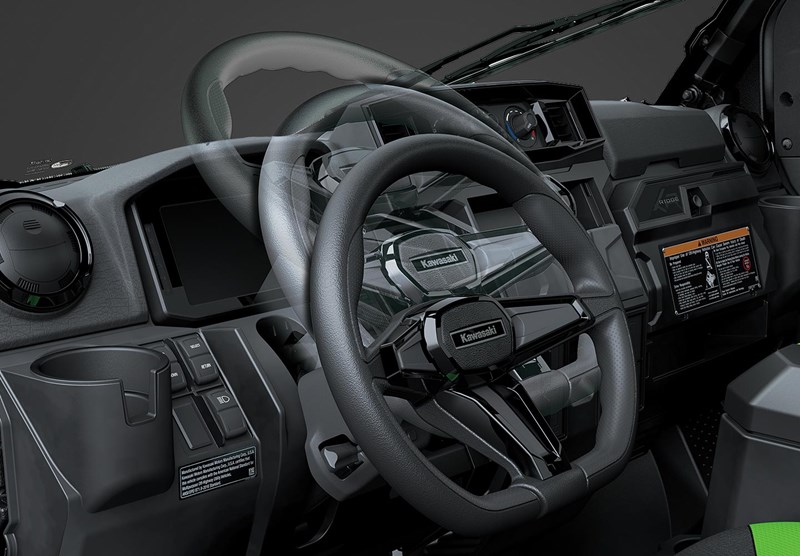

ELEGANT INSIDE Premium fit and finish details like an automotive-style ignition key, ambient floor lighting and backlit switches further contribute to the automotive-style interior. A high-grade, D-shaped tilting steering wheel is reminiscent of a luxury vehicle. Storage space abounds in RIDGE® XR. Three covered compartments and a center console in the dashboard provide space for small items and easy-access storage. A DC socket in the dashboard provides power for accessories, and two USB ports are available inside the lidded storage above the glove box.
|
| Storage | |
 |

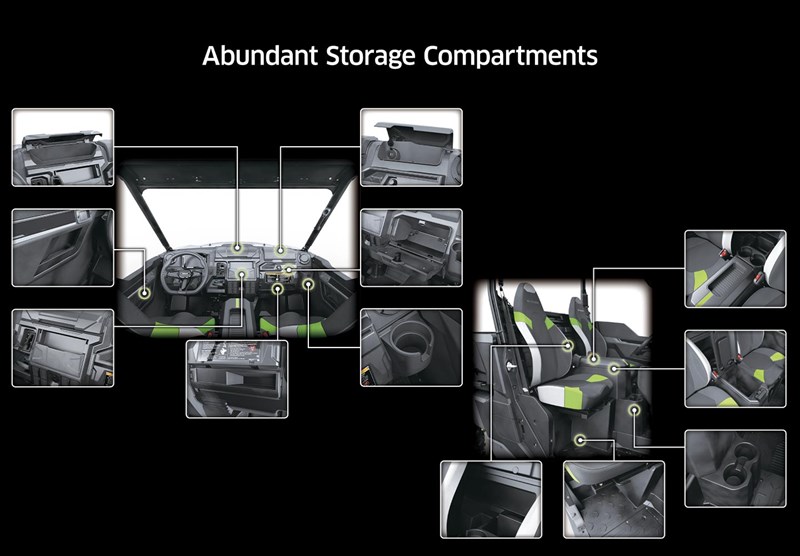

SAFE & SECURE Storage space abounds in RIDGE® XR. Multiple covered compartments in the dashboard provide enclosed storage for small items. Two cup holders are built into the left and right sides of the dashboard, which are large enough to accommodate 30 oz cups and feature a design that makes room for cup handles. Easy-access storage space is also available behind the seats as well as a handy storage space underneath the armrest console. The armrest console also features two cup holders in the back, and another two near the floor. |
| Warranty | |
 |
KAWASAKI STRONG Like all MULE™ side x sides, RIDGE® is backed by a three-year Kawasaki STRONG limited warranty. |
*Features Subject to Change Without Notice.
¹This vehicle's HP was measured according to ISO standard 4106. This ISO standard measures HP differently than the SAE standards by which the horsepower of many cars is measured, and as a result the referenced HP measurement may be higher than if it were measured by an SAE standard.
| Specifications |
|
Engine |
4-stroke, DOHC, 4-valve In-Line Four-Cylinder, liquid-cooled |
|
Displacement |
999cc |
|
Maximum Horsepower |
116.0 hp¹ @ 8,500 rpm |
|
Maximum Torque |
73.8 lb-ft @ 8,000 rpm |
|
Bore x Stroke |
73.4 x 59.0mm |
|
Compression Ratio |
10.6:1 |
|
Fuel System |
EFI |
|
Ignition |
TCBI with Digital Advance |
|
Starting System |
Electric |
|
Transmission |
Continuously Variable Transmission (CVT) with (H,L,N,R) |
|
Final Drive |
Selectable 4WD with locking rear differential, shaft |
|
Engine Braking |
Yes |
|
Alternator Output (max) |
85 amp |
|
Electronic Rider Aids |
Power Modes, Economical Riding Indicator |
|
Front Suspension |
Long-Travel, Double Wishbone |
|
Front Wheel Travel |
12.7 in |
|
Rear Suspension |
Long-Travel, Double Wishbone |
|
Rear Wheel Travel |
12.7 in |
|
Front Tire |
Duro 30 x 10-14 |
|
Rear Tire |
Duro 30 x 10-14 |
|
Wheel Type |
14" Aluminum |
|
Steering |
Rack-and-pinion w/ Electric Power Steering (EPS) |
|
Front Brakes |
Dual hydraulic 249mm discs with two-piston calipers |
|
Rear Brakes |
Dual hydraulic 249mm discs with single-piston calipers |
|
Ground Clearance |
13.8/14.6 in (max preload); (13.8 in California Model) |
|
Fuel Capacity |
12.9 gal |
|
Turning Radius |
15.0 ft |
|
Cargo Bed Dimensions |
37.6 in (Lenght) x 49.0 in (Width) x 12.8 in (Height) |
|
Cargo Bed Load Capacity |
1,000 lb (600 lb California Model) |
|
Payload Capacity |
1,499 lb (1,100 lb California Model) |
|
Seating Capacity |
2 (Bucket Seats) |
|
Towing Capacity |
2,500 lbs |
|
Lighting |
All-LED lighting |
|
Frame |
Ladder type, tubular steel |
|
Overall Length |
125.4 in |
|
Overall Width |
64.0 in |
|
Overall Height |
82.3 in |
|
Curb Weight |
2,066.1 lb (2,068.3 lb California Model)* |
|
Wheelbase |
90.7 in |
|
Instruments |
Digital speedometer, tachometer, fuel gauge, odometer, dual trip meters, total time, trip time, average speed, gear indicator, Driving Mode, Power Mode, clock, water temperature, battery voltage, oil change reminder, Bluetooth indicator, Economical Riding Indicator, maintenance reminder, high beam, neutral, reverse, and warning lights (battery, EPS, CVT, seatbelt, parking indicator, oil pressure, water temperature) |
|
Additional Features |
Full Cab with HVAC, Adjustable driver/passenger seats, ERGO-FIT®, Full-color TFT Instrumentation with Smartphone Connectivity via RIDEOLOGY THE APP Powersports, USB ports, KQR™ system compatible |
|
Color |
Ice Gray |
|
Warranty |
Kawasaki STRONG 3-Year Limited Warranty |
Specifications subject to change without notice.
¹This vehicle's HP was measured according to ISO standard 4106. This ISO standard measures HP differently than the SAE standards by which the horsepower of many cars is measured, and as a result the referenced HP measurement may be higher than if it were measured by an SAE standard.
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
| Warranty Coverage |
Kawasaki 36 month Limited Warranty
Kawasaki Protection Plus™ extended service contract can extend warranty up to 48 months past the factory period. Click image below to view details.
