Features

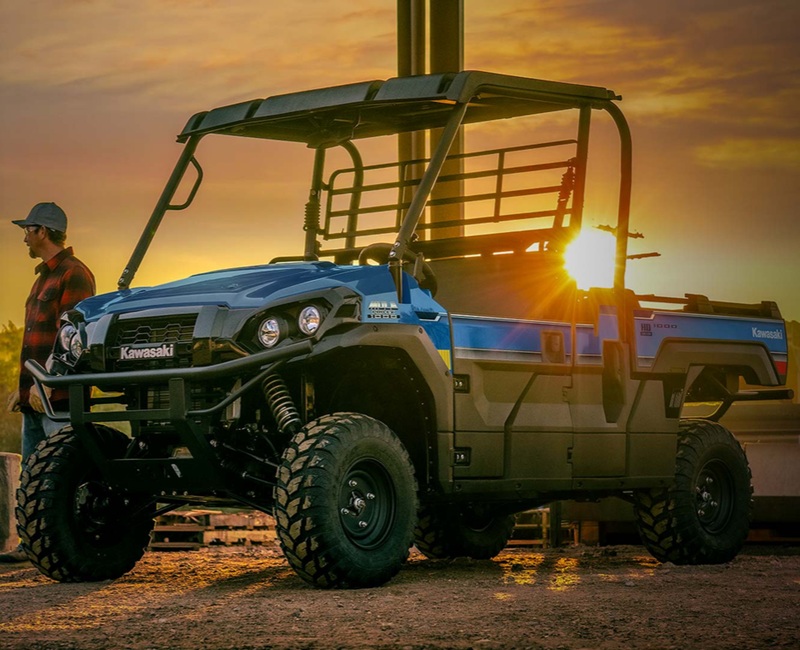

The MULE PRO-FX™ 1000 HD Edition side x side is a powerful, high-capacity, 3-passenger vehicle that's built to take on the most demanding days. With dependable power and exceptional all-day comfort, this rugged side x side is the perfect companion for work and play. Finish the job with the reliable capability of the MULE PRO-FX 1000 HD Edition.

FEATURING:

Kawasaki-Built 999cc Liquid-Cooled 4-Stroke Parallel-Twin Engine
Massive Ground Clearance
Long-Travel Double-Wishbone Suspension
Self-Leveling Rear Suspension
Hydraulic Cargo Bed Lift
Premium Front Face Styling
Easy Maintenance Accessibility (Quick Access To Oil Filter, Dipstick, Air-Cleaner Filter)
1-ton towing capacity
Massive 20-sq-ft cargo bed with hydraulic lift
Electrically selectable 2WD/4WD/dual-mode differential with diff. lock
Speed-sensitive Electric Power Steering (EPS) and tilt steering
Plastic Roof
Under-seat storage (driver/center)
Rearview mirror
Kawasaki STRONG 3-Year Limited Warranty

Top Features

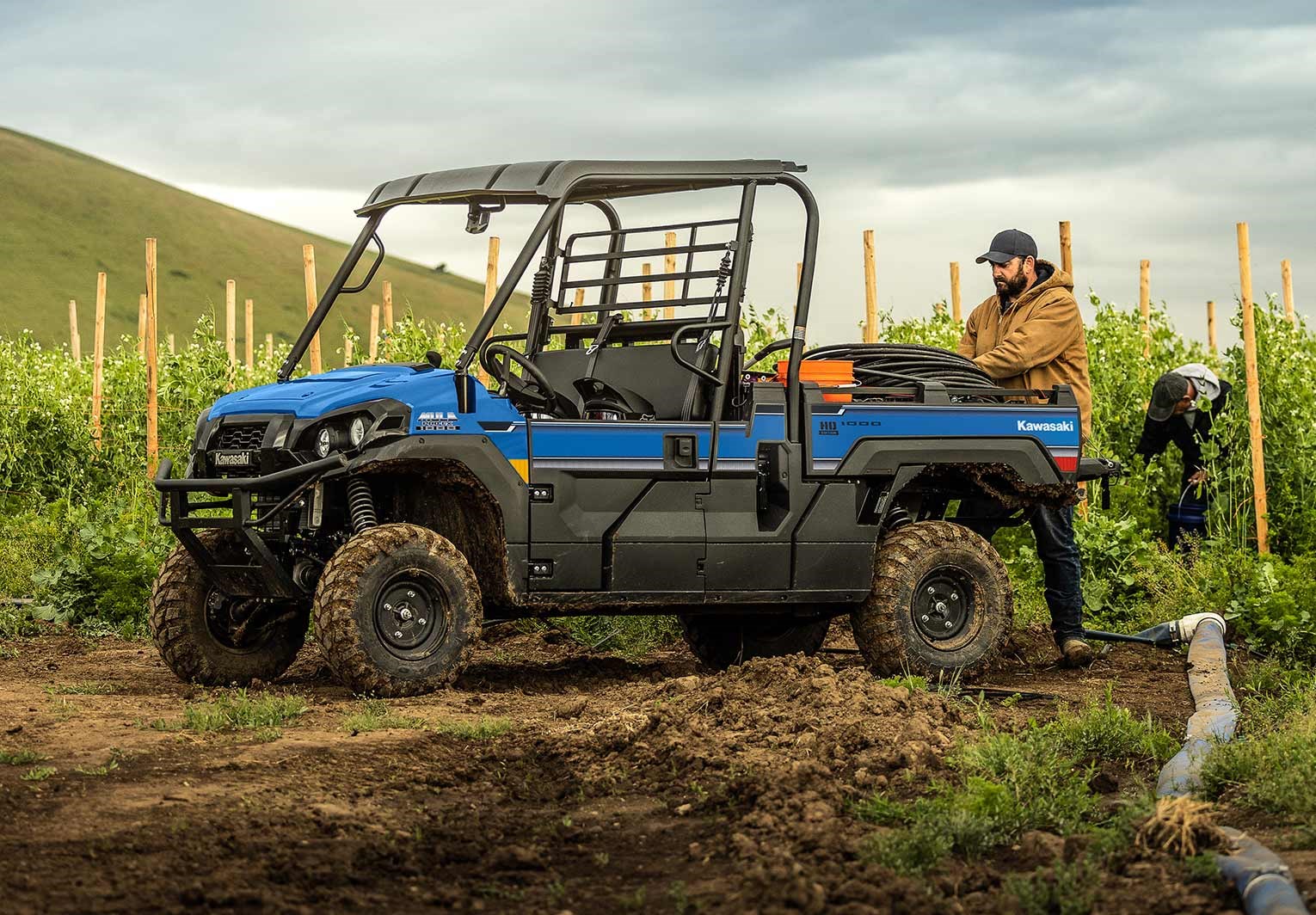

CARGO BED
LARGEST IN CLASS Get the job done more efficiently with a massive 20-sq-ft cargo bed that can fit an entire standard-sized wooden pallet with the tailgate shut. Transporting heavy loads is easier than ever with a self-leveling rear suspension to maintain a level ride height and help stabilize heavy cargo. Plus, haul up to 1,000 pounds* and tow up to 2,000 pounds.

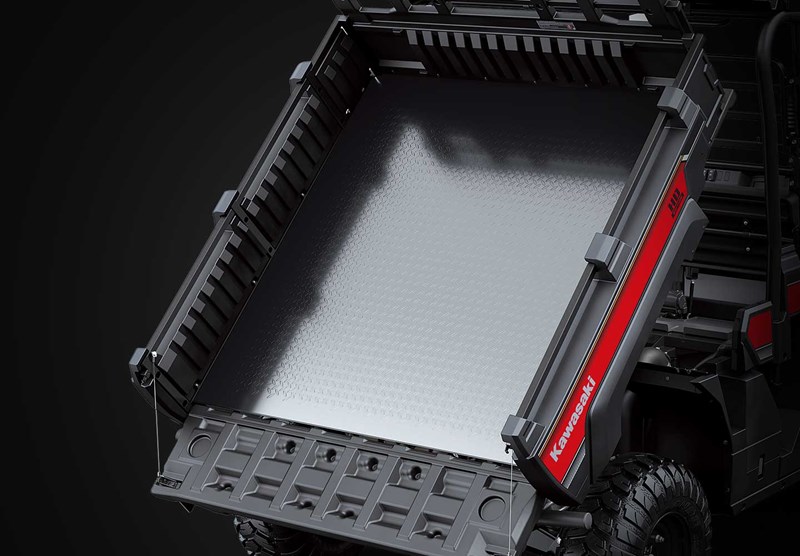

Cargo Capacity
	Reliable Hauling 1,000-lb* cargo capacity allows you to transport more with each load so you can get the job done in as few trips as possible. A switch-operated hydraulic cargo bed lift makes it easy to raise and lower the cargo bed for added convenience. *600-lb max. capacity for California models.

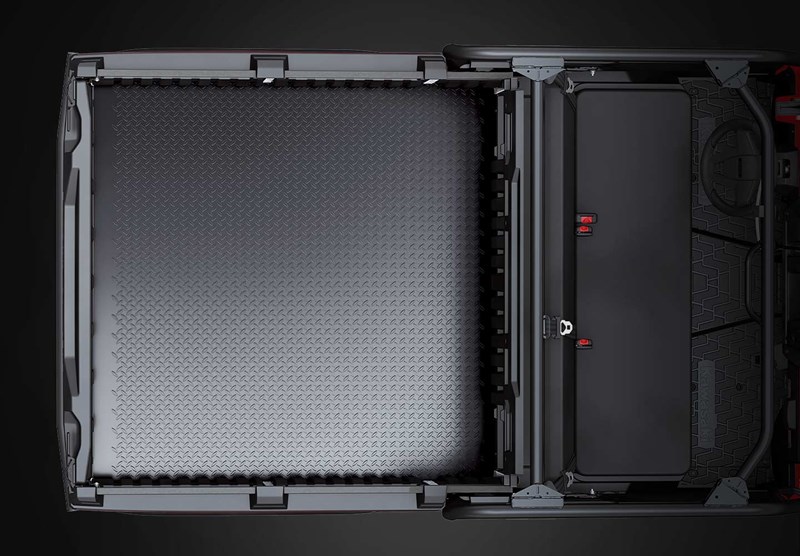

Durable Steel
	All-Day Dependability The diamond-plate steel-based cargo bed is built with Kawasaki STRONG durability, while KQR™ cargo bed rails feature quick-release capabilities with compatible Kawasaki Genuine Accessories.

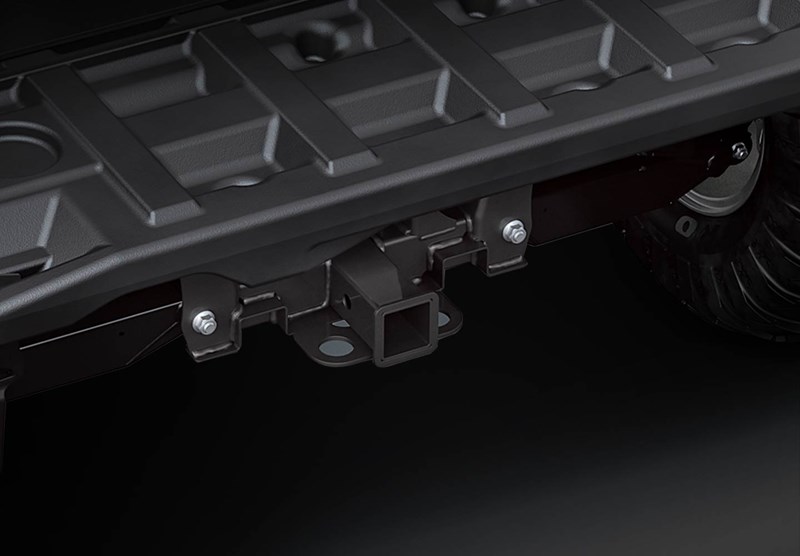

Towing Capacity
	Massive Pulling Power A 2-in hitch receiver with a massive 2,000-lb towing capacity helps you move extra equipment and supplies in fewer trips so you can get the job done quicker and more efficiently.

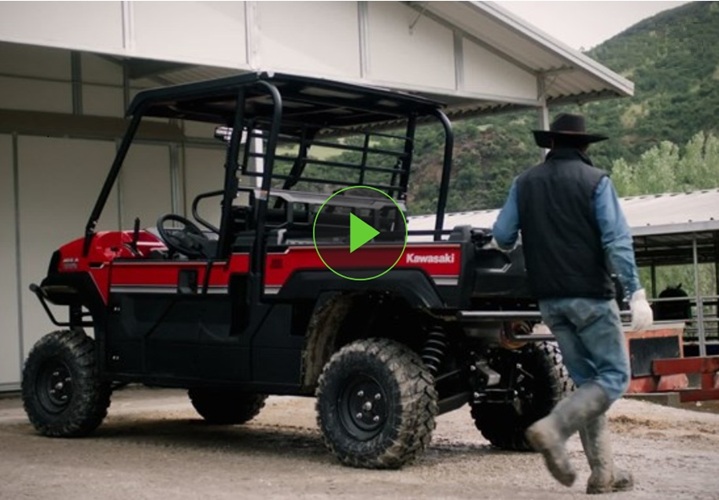

Self-Leveling Rear Suspension
	Keep It Leveled The self-leveling rear suspension helps keep your vehicle leveled when carrying a heavy load. A built-in mechanical pump automatically raises the suspension when the vehicle is moving, returning it to an optimal riding level. Spreading weight more evenly benefits both handling and braking performance.

POWER

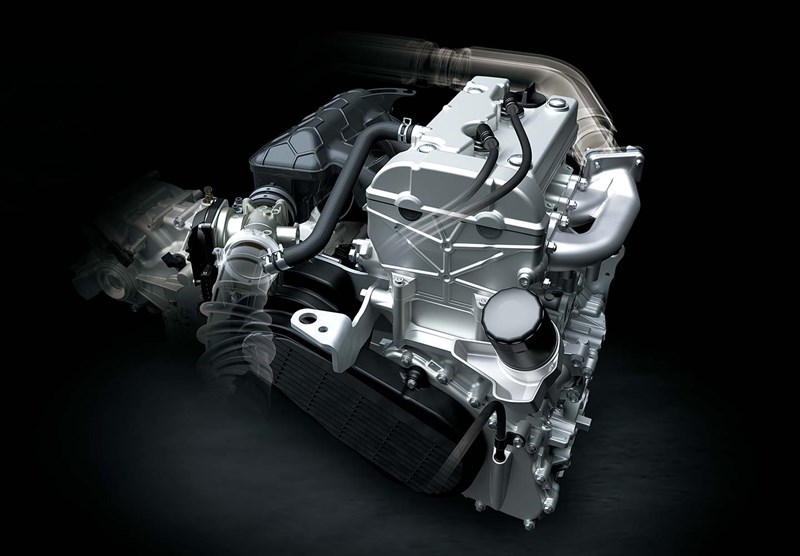

KAWASAKI PARALLEL-TWIN ENGINE Take on the most demanding jobs with a 999cc twin-cylinder Kawasaki-built engine that delivers both high power and high torque, as well as capable top speed.

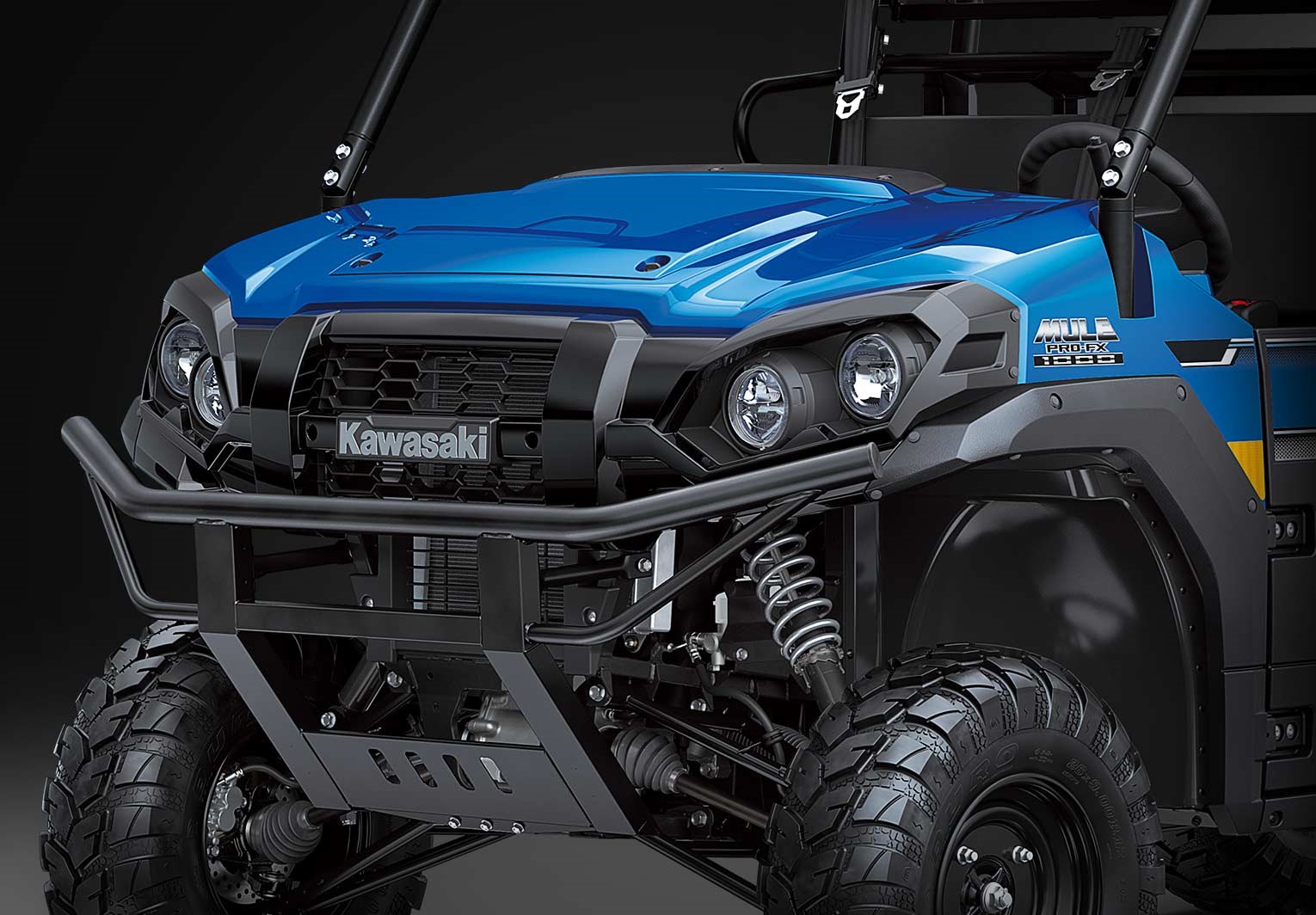

Transmission
	Smooth Power Delivery A reliable Continuously Variable Transmission (CVT) delivers instant throttle response for consistent traction and powerful acceleration across a wide range of terrain.

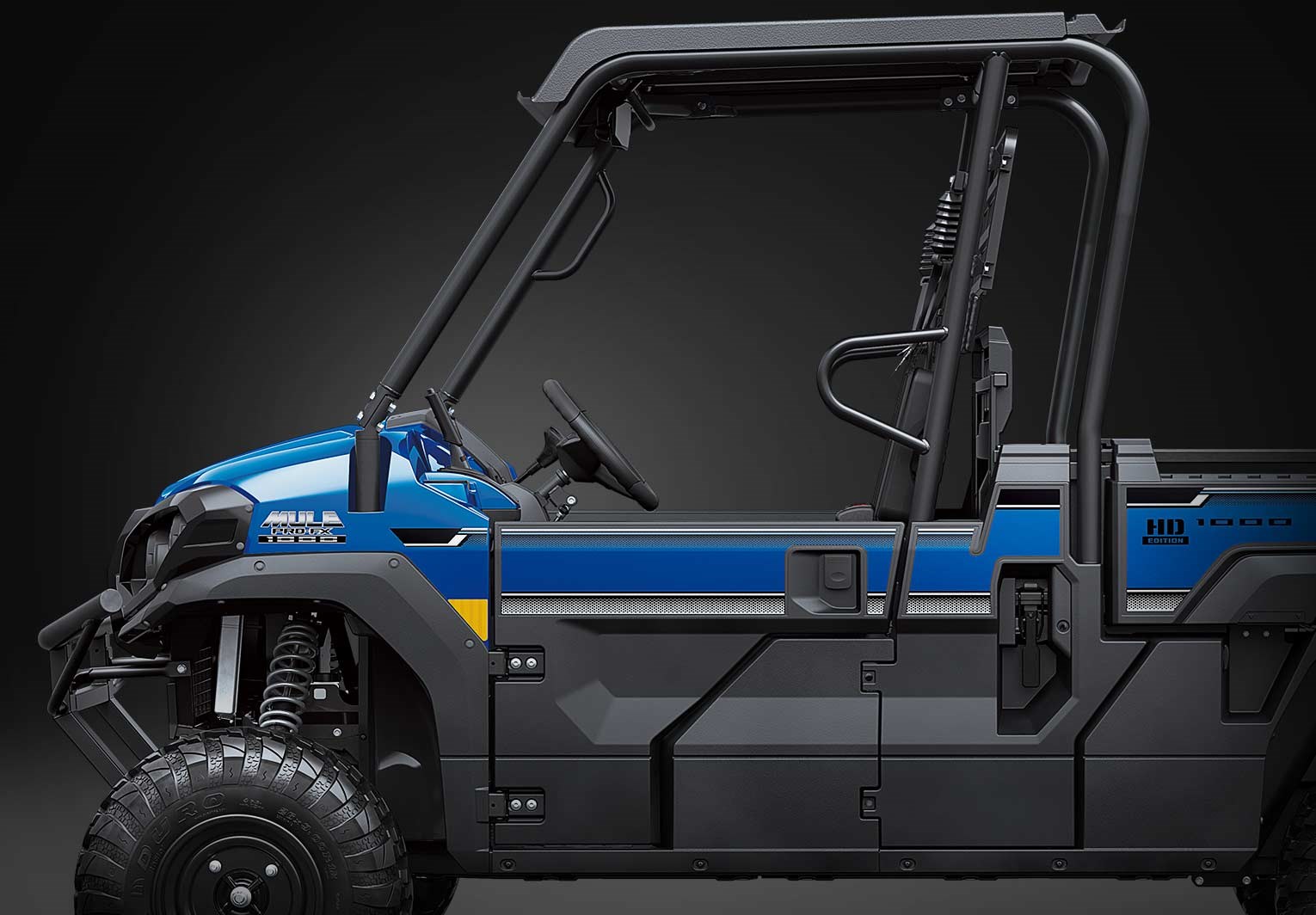

Power Delivery
	Reliable Performance A dependable Kawasaki-built engine combined with highly capable handling provides strong power delivery and reliable performance that makes this rugged side x side Kawasaki STRONG.

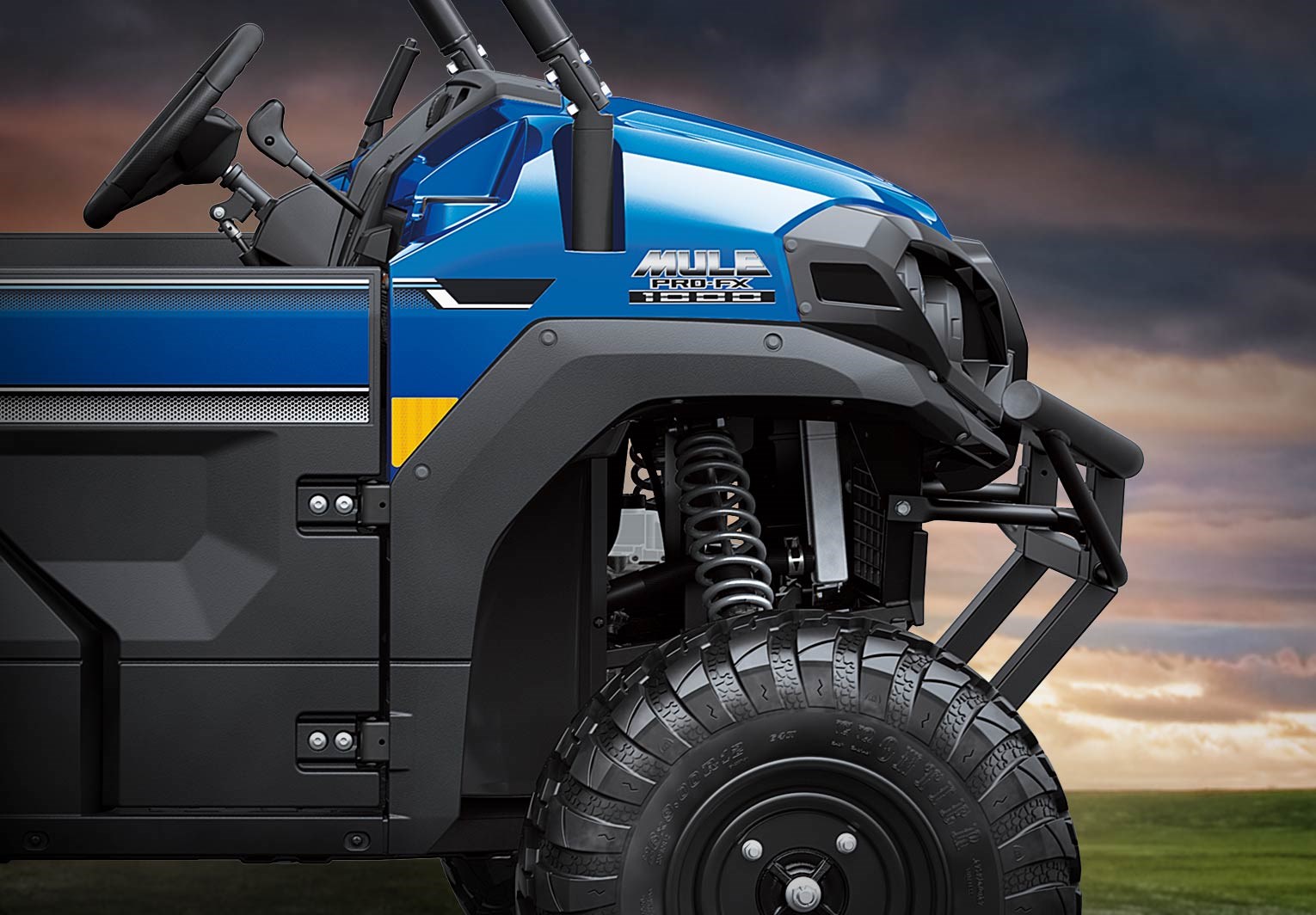

Engine Braking
	Stay In Control A Continuously Variable Transmission (CVT) also contributes to dependable engine braking which improves handling and increases driver confidence when descending slopes.

DURABILITY

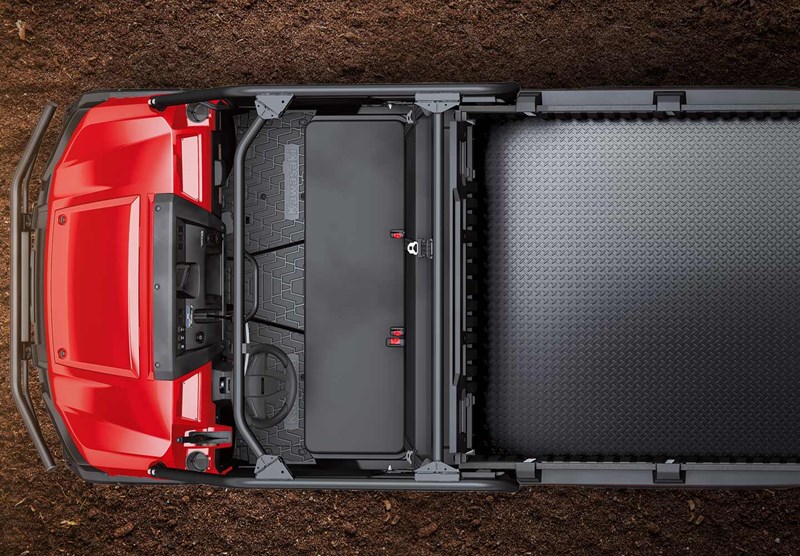

KAWASAKI STRONG Ladder-type construction of the welded Shinari-tuned frame provides the perfect balance of stiffness and flexibility. The rugged frame construction benefits not only durability, but handling and riding comfort as well.

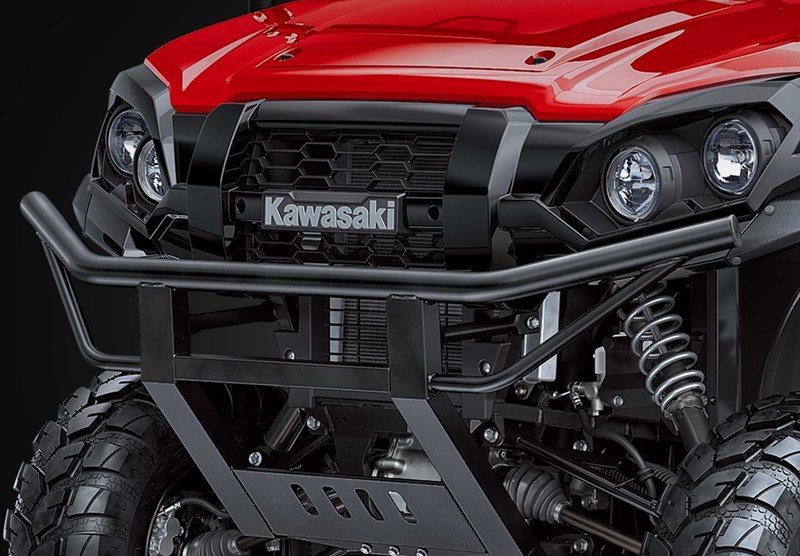

Front & Rear Bumper
	All-Day Protection All-steel front and rear bumpers provide front-to-back durability, extra protection, and complement the premium front-face styling.

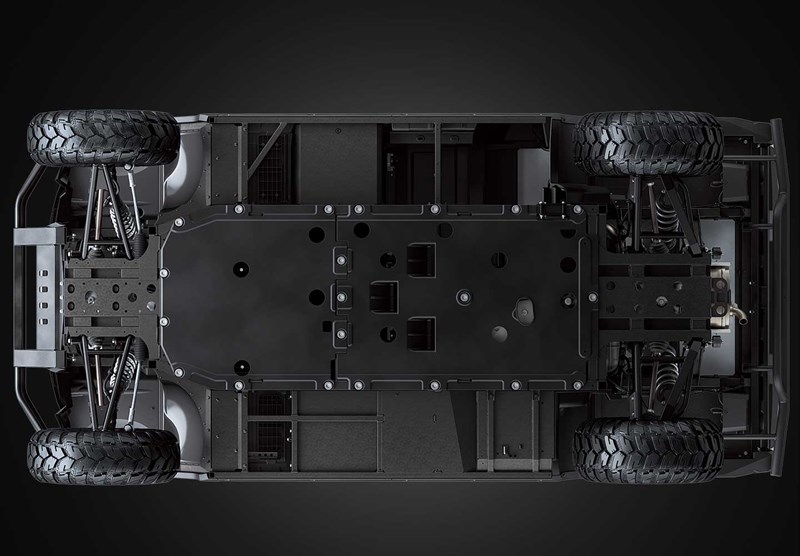

Frame
	Core Strength The welded 1-piece main frame provides a good balance of stiffness and chassis flex to deliver highly capable chassis performance and durability.

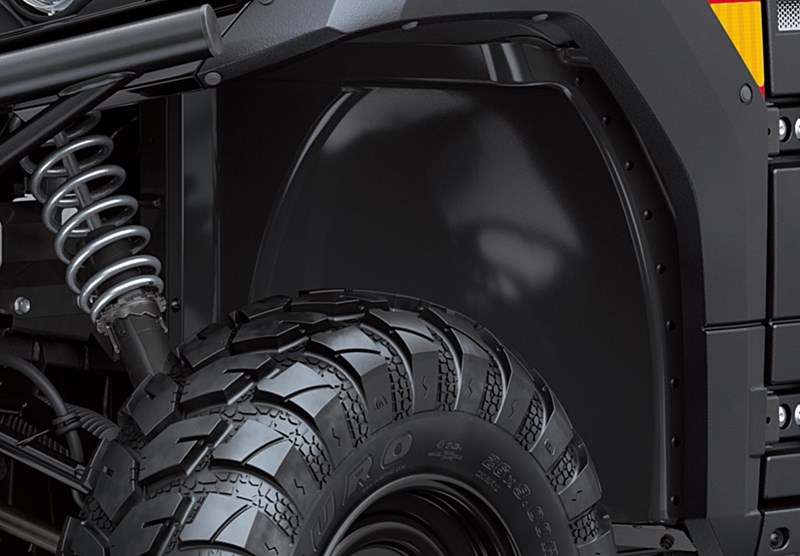

Wheel Wells
	Protecting Engine Quality Integrated inner wheel wells help protect the cabin and engine compartment from debris.

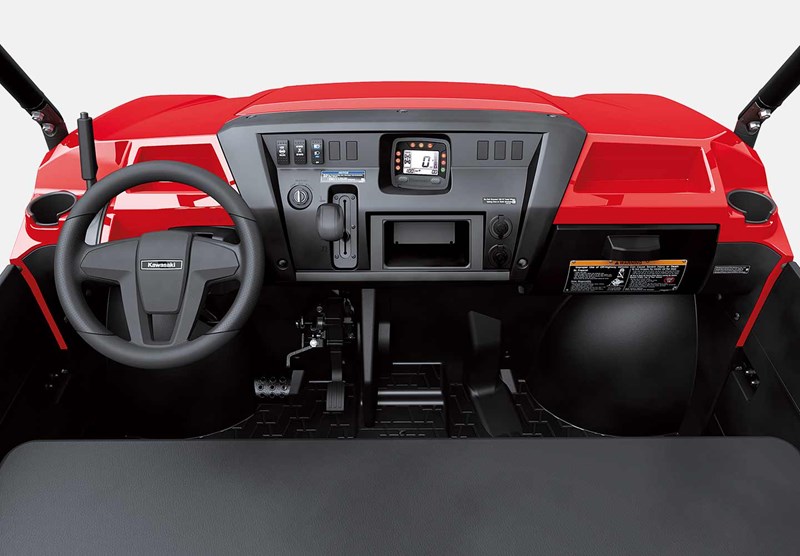

COMFORT AND CONVENIENCE
RIDE WITH COMFORT A spacious cabin provides exceptional riding comfort and plenty of shoulder and leg room for 3-passengers to sit comfortably, while a front and back double-wishbone suspension provides excellent bump absorption and off-road performance.

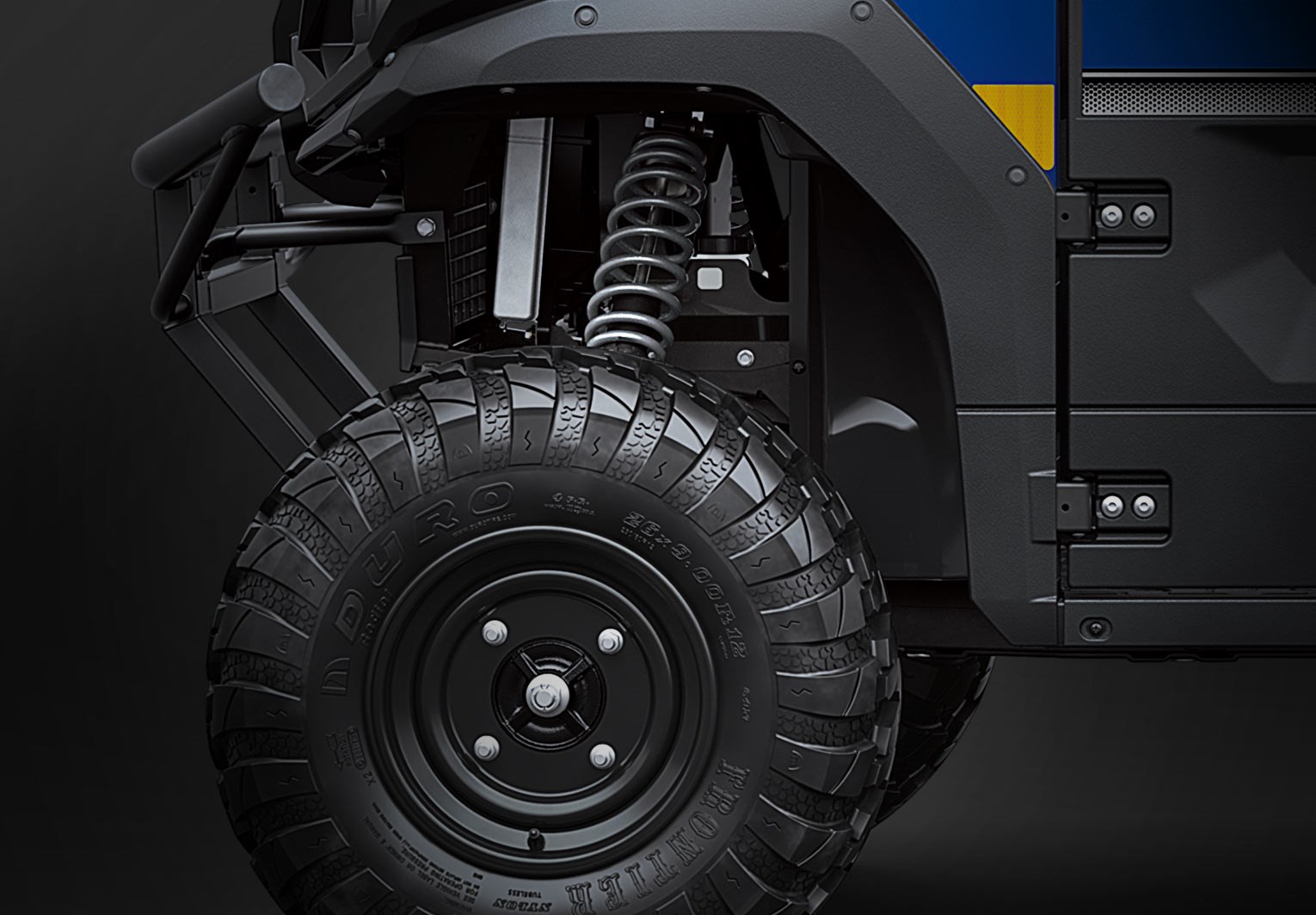

Suspension
	Long-Travel A double-wishbone suspension is used for both front and rear to enable each of the wheels to drive over obstacles with minimum effect on the chassis. Long wheel travel (10.8-in front, 10.0-in rear) contributes to the capable ground clearance as well as riding comfort.

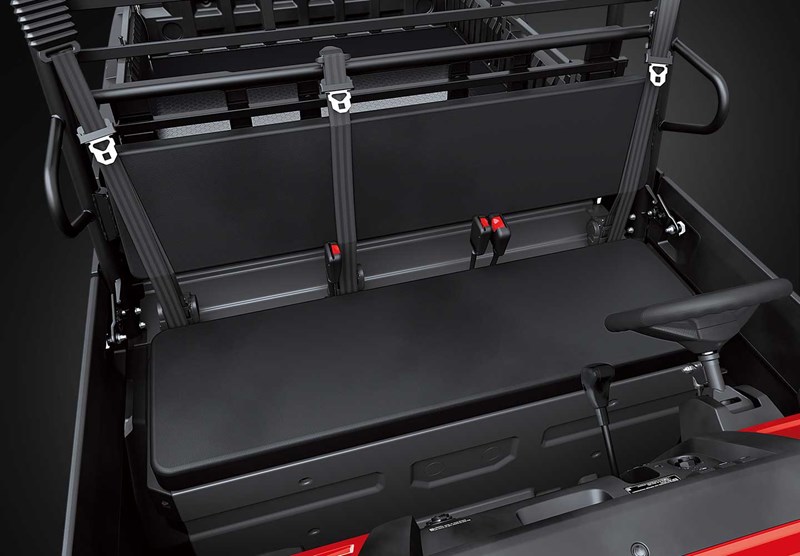

CABIN
	Catered For Comfort The spacious cabin features a cold-resistant padded bench seat that fits 3 adults comfortably with generous shoulder and leg room. Anti-cinch seatbelts enhance safety and contribute to increased riding comfort. The 12-gal storage bin located under the seat offers ample room for your belongings.

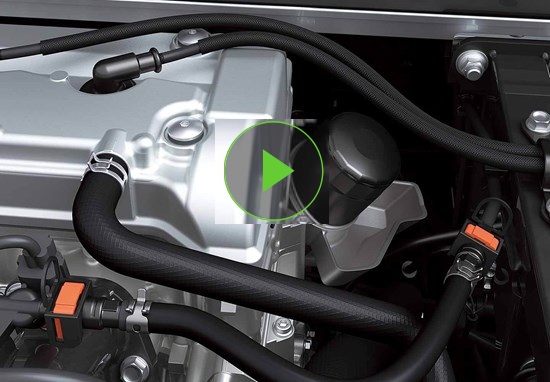

Maintenance
	Servicing Made Easy Maintaining your vehicle is a quick task with easy access to the oil filter, dipstick, and air filter. The air filter on the MULE™ PRO 1000 side x sides is 80% larger than that of the MULE™ PRO 820 series to help keep your vehicle running at full potential.

*Features Subject to Change Without Notice.

All MULE™ PRO Series side x side's Rollover Protective Structure (ROPS) meets the performance requirements of ISO 3471.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear protective gear appropriate for the use of this vehicle. Never operate under the influence of drugs or alcohol. Protect the environment. The Kawasaki MULE™ side x side is an off- highway vehicle only, and is not designed, equipped or manufactured for use on public streets, roads or highways. Obey the laws and regulations that control the use of your vehicle. ©2025 Kawasaki Motors Corp., U.S.A.

Specs

Specifications

Engine Type	4-stroke, 2-cylinder, DOHC, liquid-cooled, gas
Displacement	999cc
Maximum Horsepower	70.0 hp¹ @ 6,500 rpm
Maximum Torque	61.5 lb-ft @ 4,500 rpm
Bore x Stroke	92.0 x 75.1mm
Compression Ratio	10:1:1
Fuel System	DFI^® with 38mm throttle body
Transmission	Continuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive	Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock
Engine Braking	Yes
Alternator Output (max)	90 amp
Front Suspension/Wheel Travel	Double wishbone/11.0 in
Rear Suspension/Wheel Travel	Double wishbone/10.1 in
Front Tires	26x9.00-12, radial
Rear Tires	26x11.00-12, radial
Steering	Rack-and-pinion
Front Brakes	Dual Disc, 2 piston caliper
Rear Brakes	Dual Disc, 1 piston caliper
Park Brake Type	Independent, Mechanical Disc
Ground Clearance	11.9 in (max), 11.8 in (std)
Fuel Capacity	7.9 gal
Turning Radius	16.0 ft
Cargo Bed Dimensions (LxWxH)	54.1 x 53.3 x 11.0 in
Cargo Bed Capacity	999/600 lb CA Model
Payload Capacity	1,616.3 lb / 1,263.5 lb CA Model
Seating Capacity	3
Towing Capacity	2000 lb
Lighting	(2) Halogen headlights. (2) LED headlights
Overall Length	136.6 in
Overall Width	64.0 in
Overall Height	81.1 in
Dry Weight	1,830.2/1,832.4 lb** CA Model
Curb Weight	1,913.9/1,916.1 lb* CA Model
Wheelbase	92.3 in
Instruments	Multi-function display includes digital speedometer, fuel gauge, odometer, hour meter, clock, dual trip meters, 2WD/4WD indicator, water temperature warning indicator, oil pressure warning indicator, fuel injection warning indicator, CVT warning indicator, neutral, reverse and parking indicators, seatbelt reminder lamps
Additional Features	Roof, Rear Bumper, Additional Under Seat Storage Bin, Rearview Mirror, Hydraulic Cargo Bed Lift, Self-Leveling Rear Suspension, Anti-cinch Seatbelts
Color	Vibrant Blue
Warranty	Kawasaki Strong 3-Year Limited Warranty
Kawasaki Protection Plus™ (optional)	12, 24, 36 or 48 months

Specifications subject to change without notice.

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

**Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

¹This vehicle's HP was measured according to ISO standard 4106. This ISO standard measures HP differently than the SAE standards by which the horsepower of many cars is measured, and as a result the referenced HP measurement may be higher than if it were measured by an SAE standard.

All MULE™ PRO Series side x side's Rollover Protective Structure (ROPS) meets the performance requirements of ISO 3471.

Warranty

Warranty Coverage

Kawasaki 36 month Limited Warranty

Kawasaki Protection Plus^™ extended service contract can extend warranty up to 36 months past the factory period. Click image below to view details.
