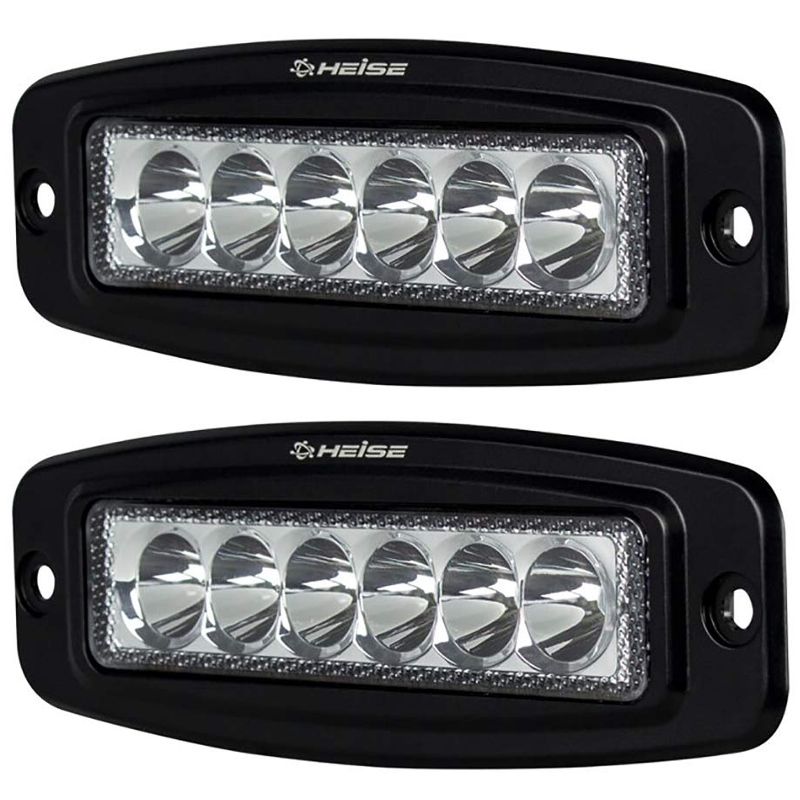

The 18-watt, 6-inch single row LED light bar is flush mounted into the plate brush guard and offers 1,440 raw lumens. It has a 6,000K color temperature and a 10-30V DC input voltage.
Heise LED Lighting Systems
Metra Electronics HE-FMDL1
SPECS
Input Voltage: 10-30V DC
Wattage: 18W (6-3W OSRAM LEDs)
Raw Lumens: 1440
LUX @ 10M: 260
Color Temperature: 6000K
Beam Pattern: 25° Spot
Size: 7.37”W x 2.50”H x 2”D
CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Lens Material: PC
Mounting Bracket: Stainless Steel
Mounting Hole to Mounting Hole is 7”
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316 and includes a gasket and a cut-out template
OPERATION
Operating Temperature: -40 °C to +60 °C
Current Consumption: .9 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Includes 2 light assemblies, wiring harness, switch, and instructions
Also compatible with HE-ARB2 Angled Rubber Mounting Base (Sold separately)
Replaces Part # H750824PKG
Fits Models with 668176 or 667964 Plate Brushguard Front Bumper installed:
2017-2020 Stampede
2017-2020 Stampede XTR & 4
2018-2020 Havoc
Also fits 2020 Tracker Off Road SVX1000
Can also be used on just about any model that has room to mount them
| SKU | 750824PKG |
|---|---|
| Color | Black |
| Replaces Part # | H750824PKG |
| Prop 65: |
